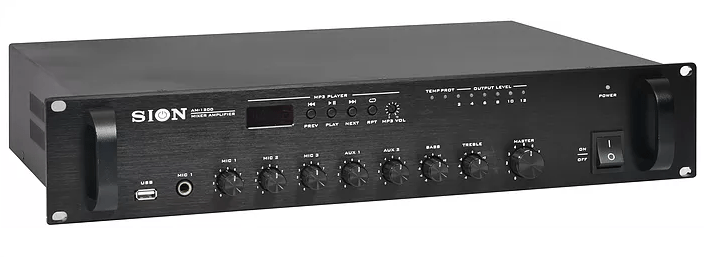

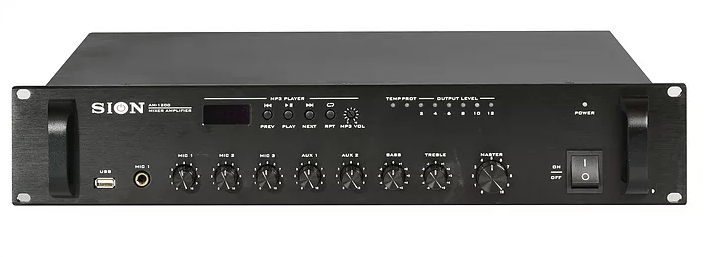

AM-1200 Sion Audio Mixer Amplifier - Commercial
AM-1200 Sion Audio Mixer Amplifier - Commercial
Couldn't load pickup availability
DESCRIPTION

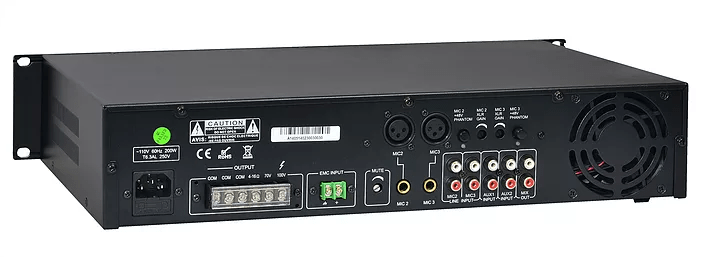

The multi-input Mixer Amplifiers have bass and treble tone control, independent volume control and Master control. Inputs: Mic XLR, Aux RCA, EMC for Evacuation. Output: 4 Ohms 100V/70V and Booster. Each one has automatic cooling when they reach 55 ℃, as well as protections against overload, temperature, clipping and short circuit. Adjustable priority for Mic 1 with front level control. LEDs indicating operation, saturation and audio levels. Also USB and SD playback. Remote control and rack mounting fins.
DATA SHEET
|
SPECIFICATIONS |
|
| Model | AM-1200 Audio Mixer Amplifier |
| Watts RMS | 120W RMS |
| Speaker Outputs | 70V, 100V & 4~16Ω |
| Tones | Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz |
| Frequency response | 50Hz~16KHz (+1dB, 3dB) |
| Automatic cooling | Automatic when the temperature reaches 55℃ |
| Protection | Against overload, temperature, clipping and short circuit |
| Dimensions | 484 x 303 x 88mm |
| Weight | 10Kg |
| Energy consumption | 200W |
| Finished | Panel: aluminum plate, Box: steel plate, |
CHARACTERISTICS
120W Mixer Amplifier with USB Tones (bass, treble), volume control per channel and master, Adjustable priority, Inputs: 3 Mic XLR Phamton, 2 Aux RCA, 1 EMC Evac, Output: 4 Ohms 100V/70V, Booster, Short circuit protection , overload and temperature, Remote control. Rack mounting fins. 2RU.
484 x 303 x 88mm
