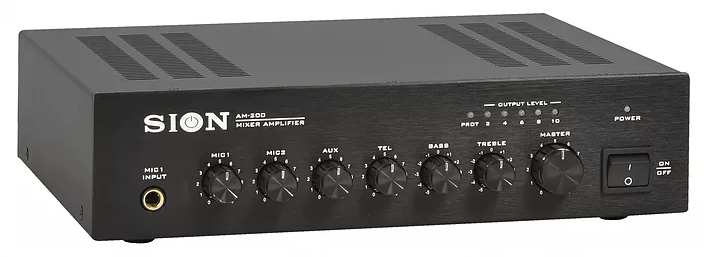

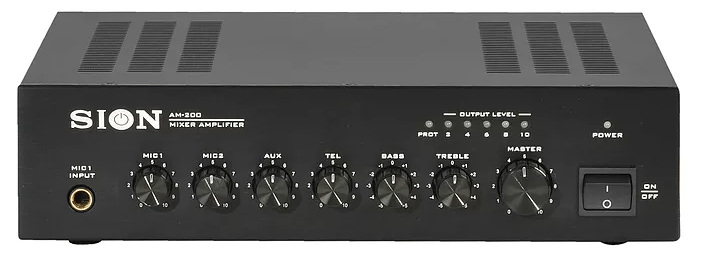

AM-200 Sion Audio Mixer Amplifier - Commercial
AM-200 Sion Audio Mixer Amplifier - Commercial
Couldn't load pickup availability
DESCRIPTION
The multi-input Mixer Amplifiers have bass and treble tone control, independent volume control and Master control. Inputs: Mic XLR, Aux RCA, EMC for Evacuation. Output: 4 Ohms 100V/70V and Booster. Each one has automatic cooling when they reach 55 ℃, as well as protections against overload, temperature, clipping and short circuit. Adjustable priority for Mic 1 with front level control. LEDs indicating operation, saturation and audio levels. Also USB and SD playback. Remote control and rack mounting fins.
DATA SHEET
|
SPECIFICATIONS |
|
| Model | AM-200 Audio Mixer Amplifier |
| Watts RMS | 20W RMS |
| Speaker Outputs | 70V, 100V & 4~16Ω |
| Tones | Bass: 10dB, Treble: 10dB |
| Frequency response | 50Hz~16KHz (+1dB, -3dB) |
| Automatic cooling | Automatic when the temperature reaches 55℃ |
| Protection | Against overload, temperature, clipping and short circuit |
| Dimensions | 360 x 274 x 66mm |
| Weight | 3.56kg |
| Energy consumption | 40W |
| Finished | Panel: aluminum plate, Box: steel plate, |
CHARACTERISTICS

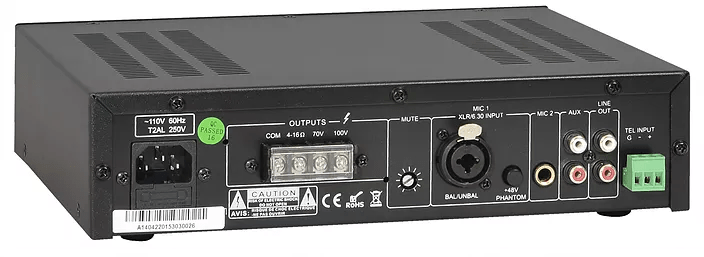

Amplifier / Mixer. 20W RMS tone control, adjustable priority, microphone inputs Mic1 combo jack XLR/TS, and Phamton, Mic2 Jack TS, RCA line, Aux Tel Phoenix, Booster RCA outputs, 100/70V and 4 Ohm transformer. Full protection against high temperature, short circuit and overload.
