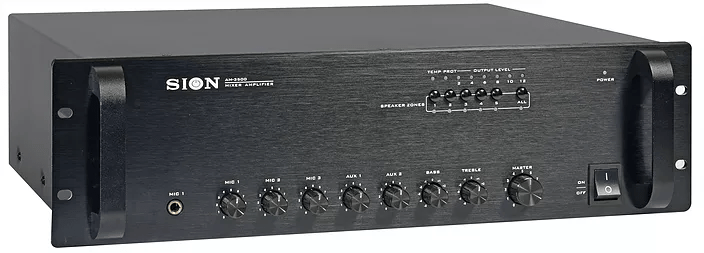

AM-3500Z Sion Audio Mixer Amplifier - Commercial Promotion
AM-3500Z Sion Audio Mixer Amplifier - Commercial Promotion
Couldn't load pickup availability
DESCRIPTION

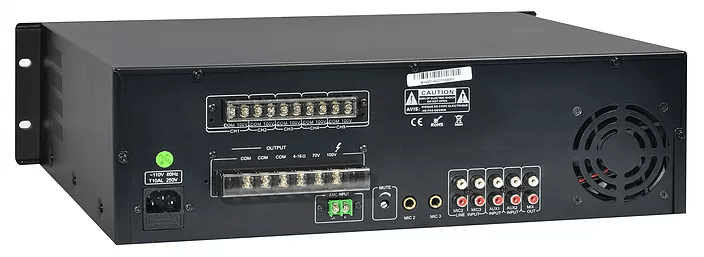

The multi-input Mixer Amplifiers have bass and treble tone control, independent volume control and Master control. Inputs: Mic XLR, Aux RCA, EMC for Evacuation. Output: 4 Ohms 100V/70V and Booster. Each one has automatic cooling when they reach 55 ℃, as well as protections against overload, temperature, clipping and short circuit. Adjustable priority for Mic 1 with front level control. LEDs indicating operation, saturation and audio levels. Also USB and SD playback. Remote control and rack mounting fins.
DATA SHEET
|
SPECIFICATIONS |
|
| Model | AB-3500Z Audio Mixer Amplifier |
| Watts RMS | 350W RMS |
| Speaker Outputs | 70V, 100V & 4~16Ω |
| Tones | Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz |
| Frequency response | 50Hz~16KHz(+1dB, 3dB |
| Automatic cooling | Automatic when the temperature reaches 55℃ |
| Protection | Against overload, temperature, clipping and short circuit |
| Dimensions | 484 x 385 x 132mm |
| Weight | 13.88Kg |
| Energy consumption | 500W |
| Finished | Panel: aluminum plate, Box: steel plate, |
CHARACTERISTICS
350W Mixer Amplifier, 5 Zones, Tones (bass, treble), volume control per channel and master, priority EMC input, except on Mic1, Inputs: 3 mic, 2 aux, Output: 4 Ohm 100V/70V, Booster line, Protection short circuit, overload and temperature. Rack mounting fins. 3RU.
