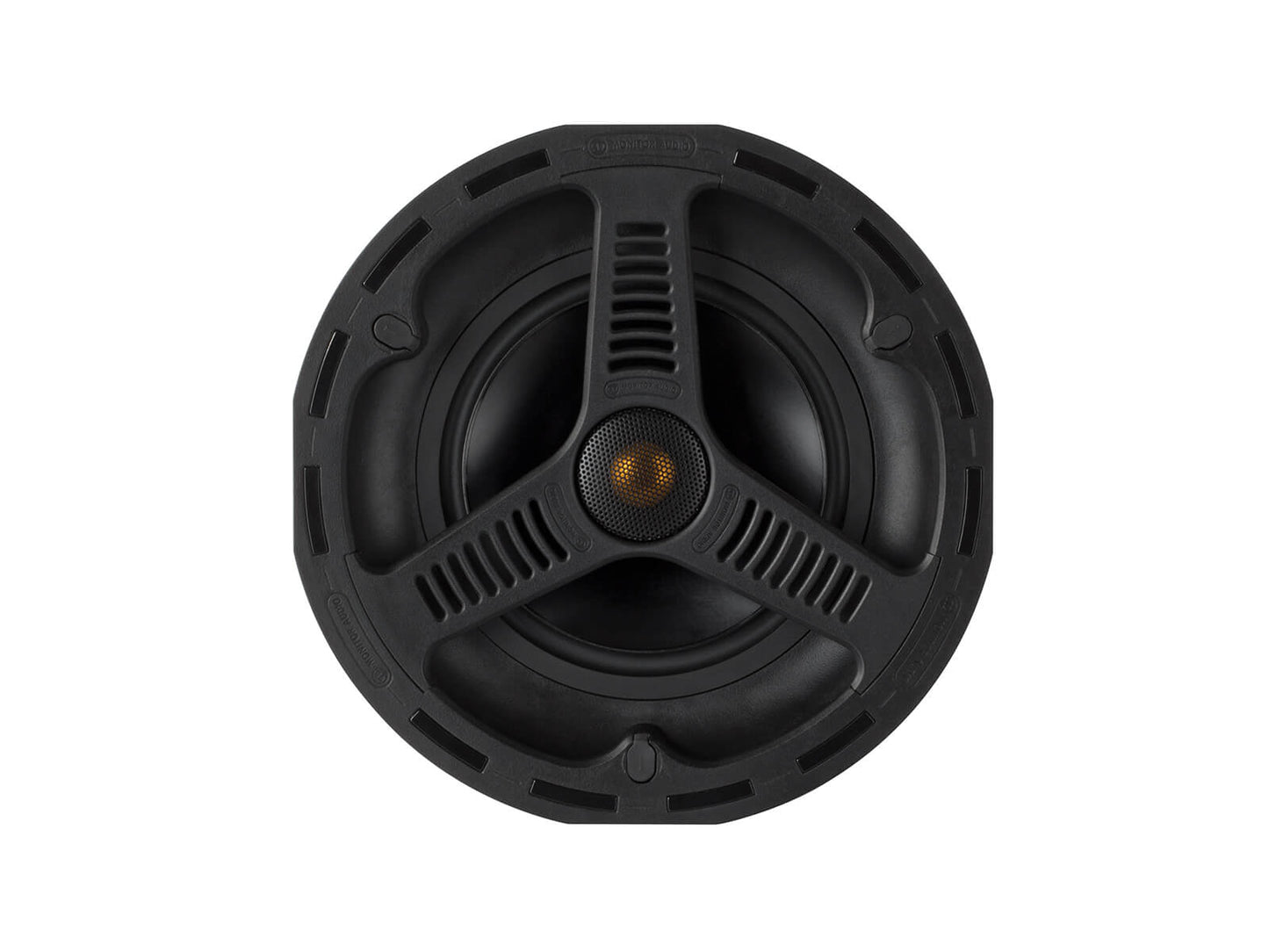

AWC265 Hi-Fi Ceiling Speaker Monitor Audio - Unit
AWC265 Hi-Fi Ceiling Speaker Monitor Audio - Unit
Frequency response 60 Hz — 30 kHz Sensitivity (1W@1M) 88 dB Nominal impedance 8 ohms Maximum SPL 105.8 dBA Power handling (RMS) 60 W Recommended amplifier requirements 20 — 60 W Drivers C-cone bass driver 6.5" CAM 1" C- CAM Gold Dome Tweeter (fixed
angle) Controls HF Level Switch (+3 dB / 0 dB / -3 dB) - Spot adjustable
Installation Setting Controls 2 x (1 pair) Gold-plated push-type terminal Overall diameter (including grille) 251.71 mm (915/16") Overall depth (including grille) 93.5 mm (31/2" ) Cutting hole diameter 211 mm (81/4") Mounting depth 88.5 mm (31/2") Optional square grille - Outside dimensions 249 x 249 mm (9 3/16") Fixing type Leg fixings 3-Position Tri-Grip Dog Collar Construction Material PC-ABS with mineral fill Polymer (UL V0 fire retardant,
RoHS Compliant2) Grille SS430 Stainless Steel Magnets Samarium Cobalt Operating Temperature Range -34° to 79° C -29° to 174° F Weight 2.04 kg (4 lb 8 oz) Pre-Build Support Back Box CM -B CSM-BOX Sold as a single unit
