BS-530T Sion Satellite Wall Speaker - Commercial Audio
BS-530T Sion Satellite Wall Speaker - Commercial Audio
Regular price
$69.00 USD
Regular price
Sale price
$69.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
DESCRIPTION

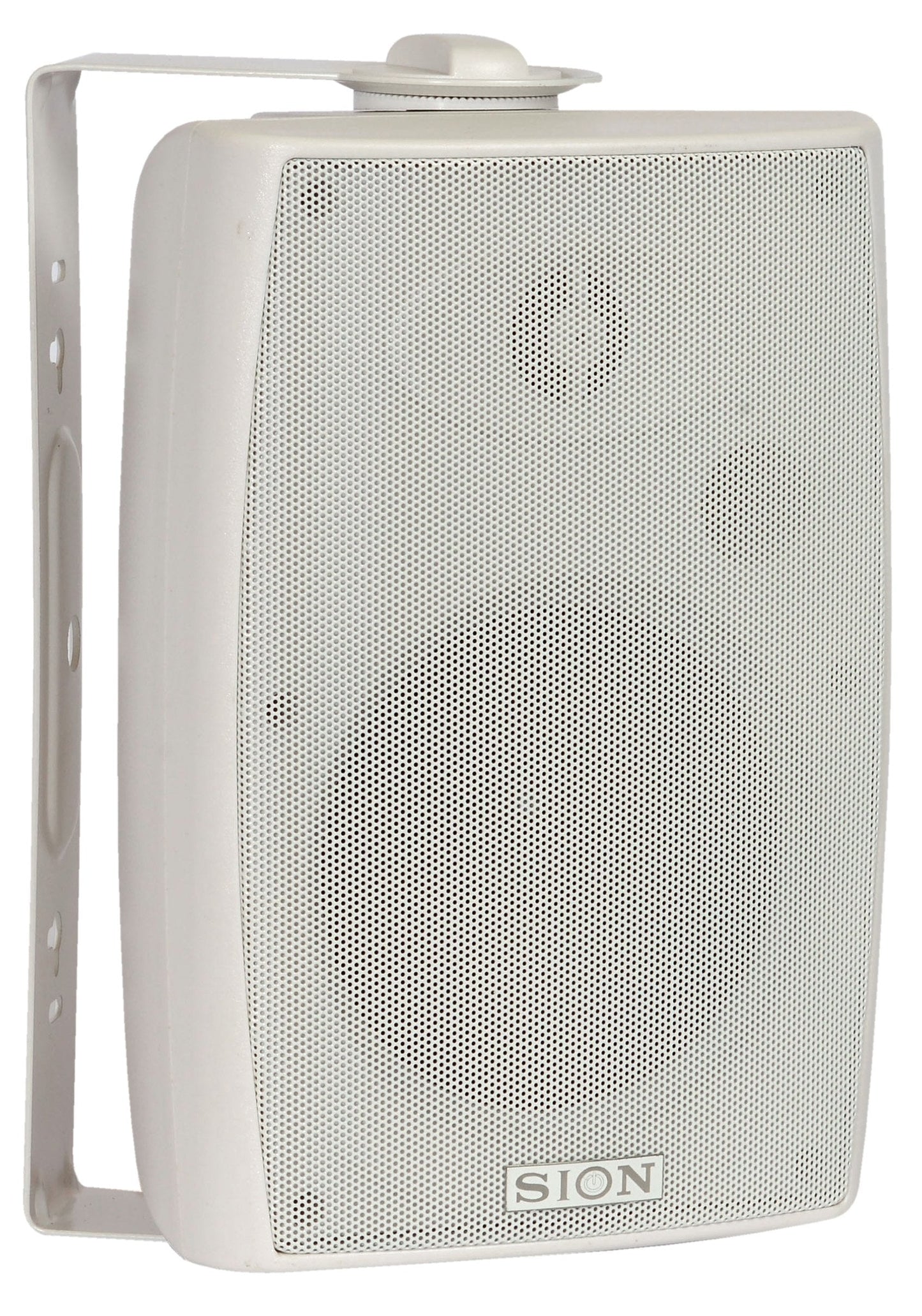

Satellite speaker with special adhesion system. Two-way systems with high frequency diffusers and <Bass Reflex> type cabinet With vibration control and normal modes. Fixing to wall or ceiling with one or two degrees of freedom depending on the type of baffle. Available in 2, 5, 10, 20 and 30W RMS with line transformer.
DATA SHEET
|
SPECIFICATIONS |
|
| Model | BS-530T |
| Taps @100V | 3.75W, 7.5W, 15W, 30W |
| Taps @70V | 1.9W, 3.75W, 7.5W, 15W, 30W |
| Impedance | 2.6KΩ/1.3KΩ/670Ω/330Ω/165Ω |
| Entrance | 70V/100V/8Ω |
| Max. SPL (nominal W/1M) | 103dB |
| Response frequency | 100-18KHz |
| Driver Size | 5"x1 1.5"x1 |
| Finished | ABS baffle Grille: Steel |
| Dimensions | 285x 180 x 186mm |
| Weight | 2.7kg |

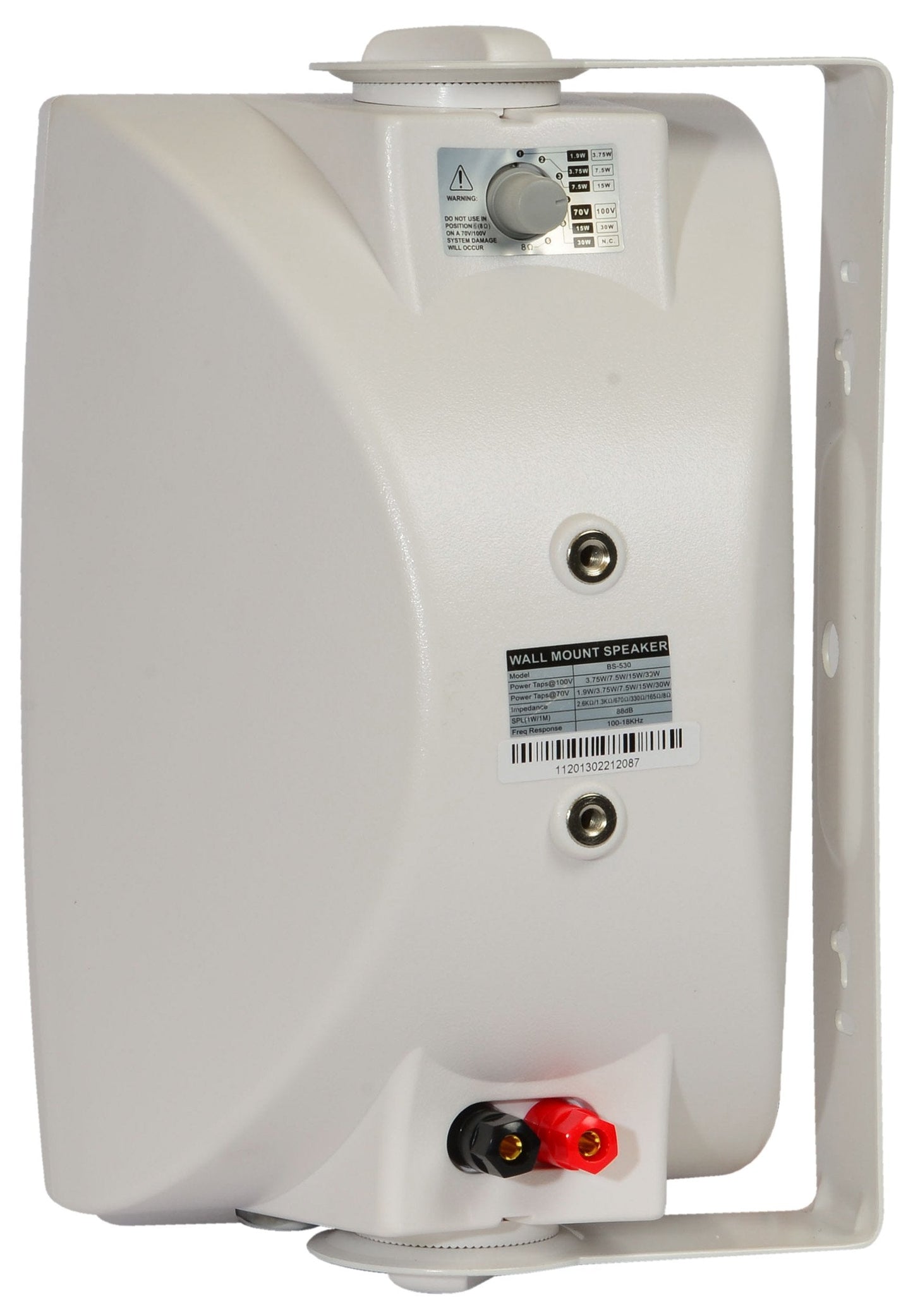

| Mounting type | With U type bracket fixed by screw |
CHARACTERISTICS
30W, 5.5" ABS satellite speaker, 100V line transformer, power control 30W, 15W, 7.5W, and 8 Ohm, 2-way CroosOver, fixing bracket.
