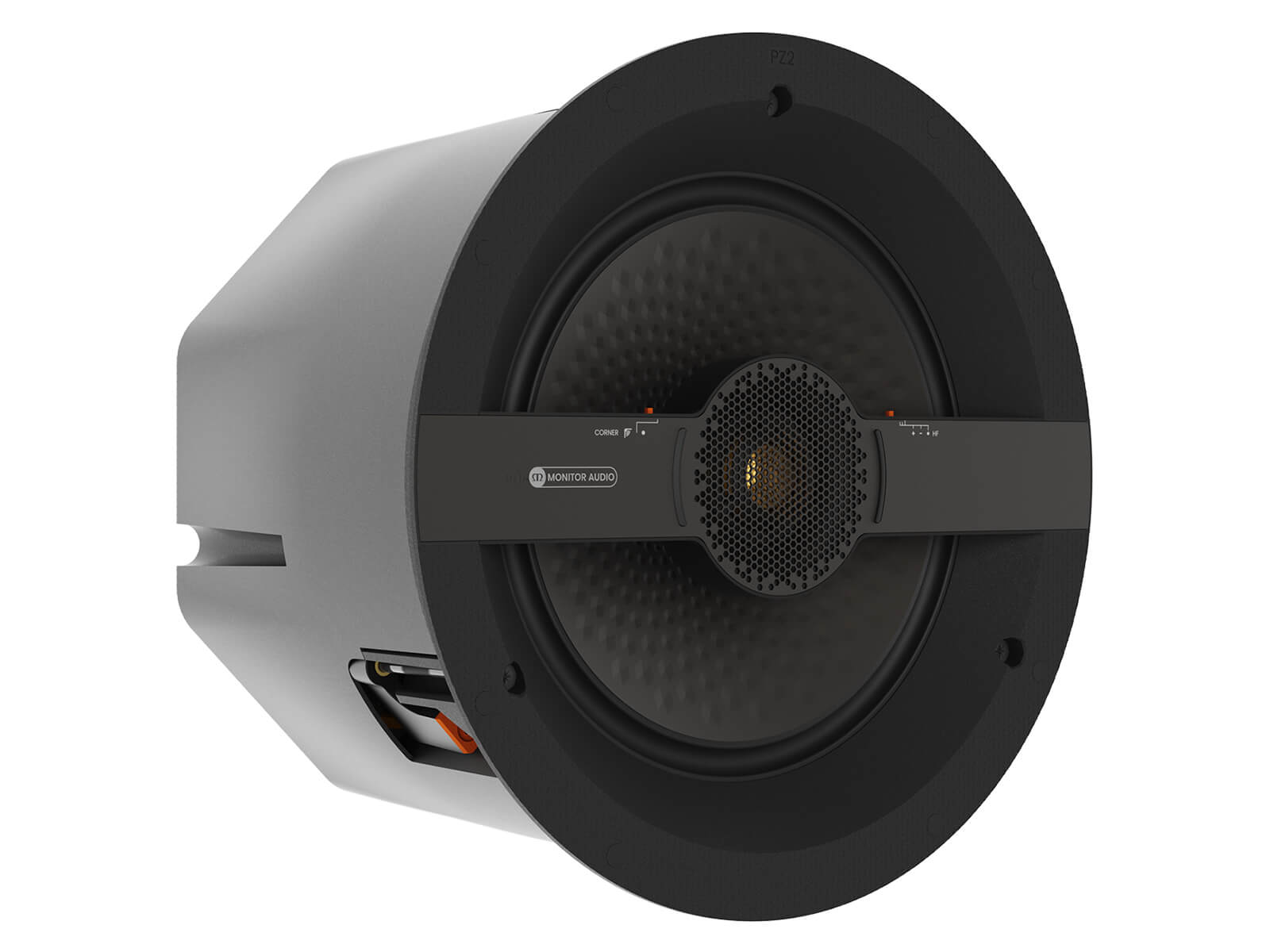

C2L CP Hi-Fi Ceiling Speaker Monitor Audio - Unit

Setting
2 way

Channels
1

Frequency Response, Installed (cutoff points at -6 dB)
75Hz – 25kHz​

Nominal Impedance
8 ohms

Minimum Impedance (20 Hz to 20 kHz)
6.6 ohms @ 10 kHz

Sensitivity (2.83 Vrms @ 1 m, Installed)
89 dB

Maximum Linear Sound Pressure Level (single speaker @ 1 m with Z-Weighting)
120dB

Maximum Continuous Power (RMS at Nominal Impedance, Pink Noise with a Peak Factor of 6 dB)
100W

Associated Amplifier Power (RMS at 8 ohms. Musical Signal)
50 – 200W

Speakers Used
1 x 229 mm (9") RST II mid/bass speaker
1 x 32mm (1.26") C-CAM tweeter

Cutoff frequency
Bass/Treble: 2.25 kHz

Bass Settings
Hermetic Enclosure

Mounting depth
177.5mm

Cutting Diameter
248mm

External Dimensions (Including Protective Grille) (H x W x D)
278 x 278 x 181mm

Weight (unit)
3.3kg

Support for Existing Installations
CL-B

Enclosure Finish
Matte Black, Orange and Bronze

Sold by
Units

Corner Switch
On/Off

HF Switch
- /0/ +
