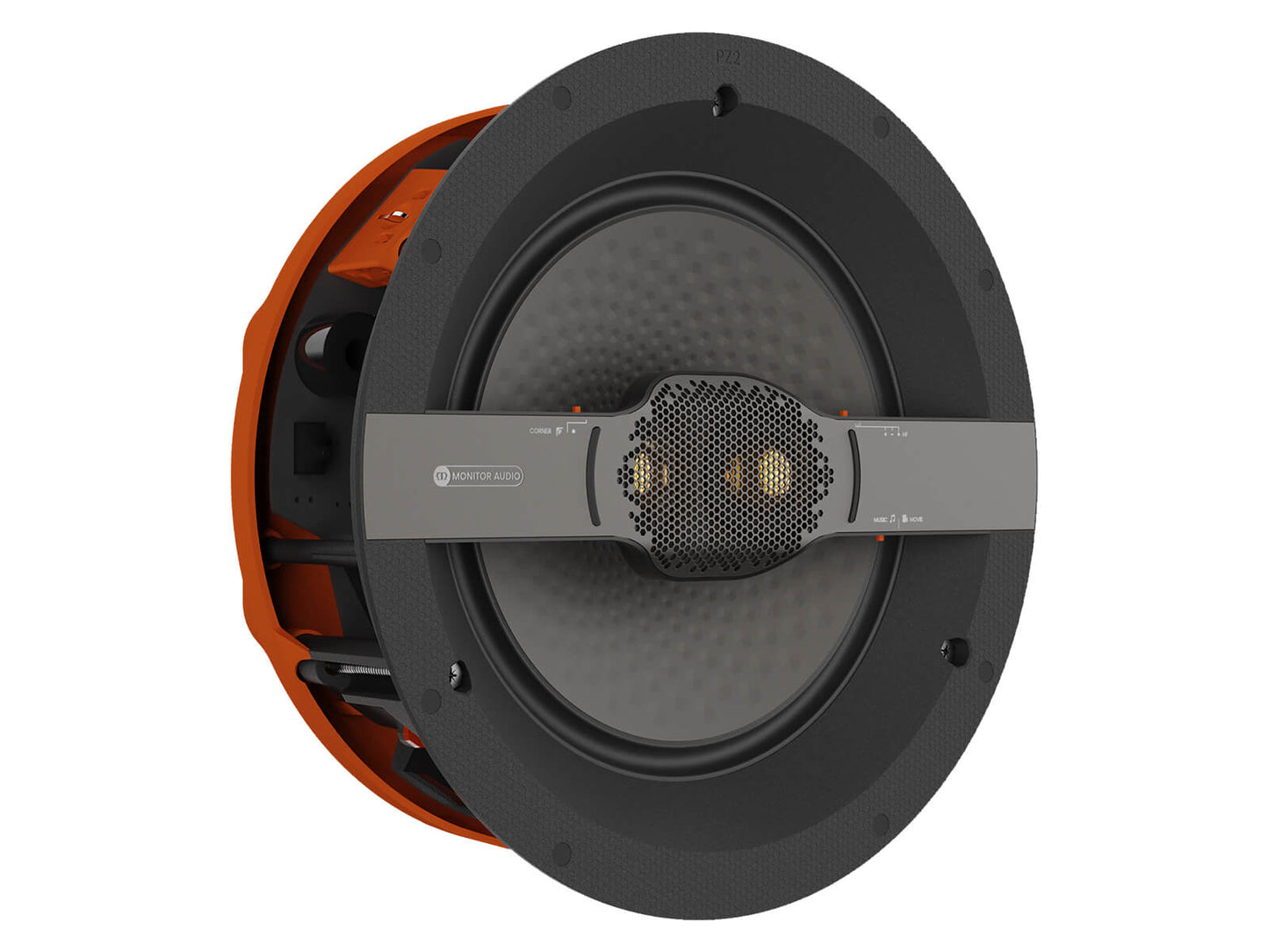

C2L T2X Hi-Fi Ceiling Speaker Monitor Audio - Unit

Setting
2 way

Channels
1 (Monkey)
2 (Stereo)

Frequency Response, Installed (cutoff points at -6 dB)
30Hz – 30kHz​

Nominal Impedance
4 ohms (Mono)
8 ohms (Stereo)

Minimum Impedance (20 Hz to 20 kHz)
3.2 ohms @ 15 kHz (Mono)
6.4 ohms @ 15 kHz (Stereo)

Sensitivity (2.83 Vrms @ 1 m, Installed)
88 dB

Maximum Linear Sound Pressure Level (single speaker @ 1 m with Z-Weighting)
(Mono) 117dB

Maximum Continuous Power (RMS at Nominal Impedance, Pink Noise with a Peak Factor of 6 dB)
240W (Mono)
2 x 120 W (Stereo)

Associated Amplifier Power (RMS at 8 ohms. Musical Signal)
60 – 240 W (Mono)
2 x 60 – 240 W (Stereo)

Speakers Used
1 x 229 mm (9") RST II Dual Voice Coil Mid/Bass Speaker
2 x 32mm (1.26") C-CAM tweeters

Cutoff frequency
Bass/Treble: 2 kHz

Mounting depth
99mm

Cutting Diameter
248mm

External Dimensions (Including Protective Grille) (H x W x D)
278 x 278 x 103mm

Weight (unit)
2.7kg

Support for Existing Installations
CL-B

Enclosure Finish
Matte Black, Orange and Bronze

Sold by
Units

Corner Switch
On/Off

HF Switch
- /0/ +

Music/Movie Switch
Music/Movie

Mono/Stereo Switch
Mono/Stereo
