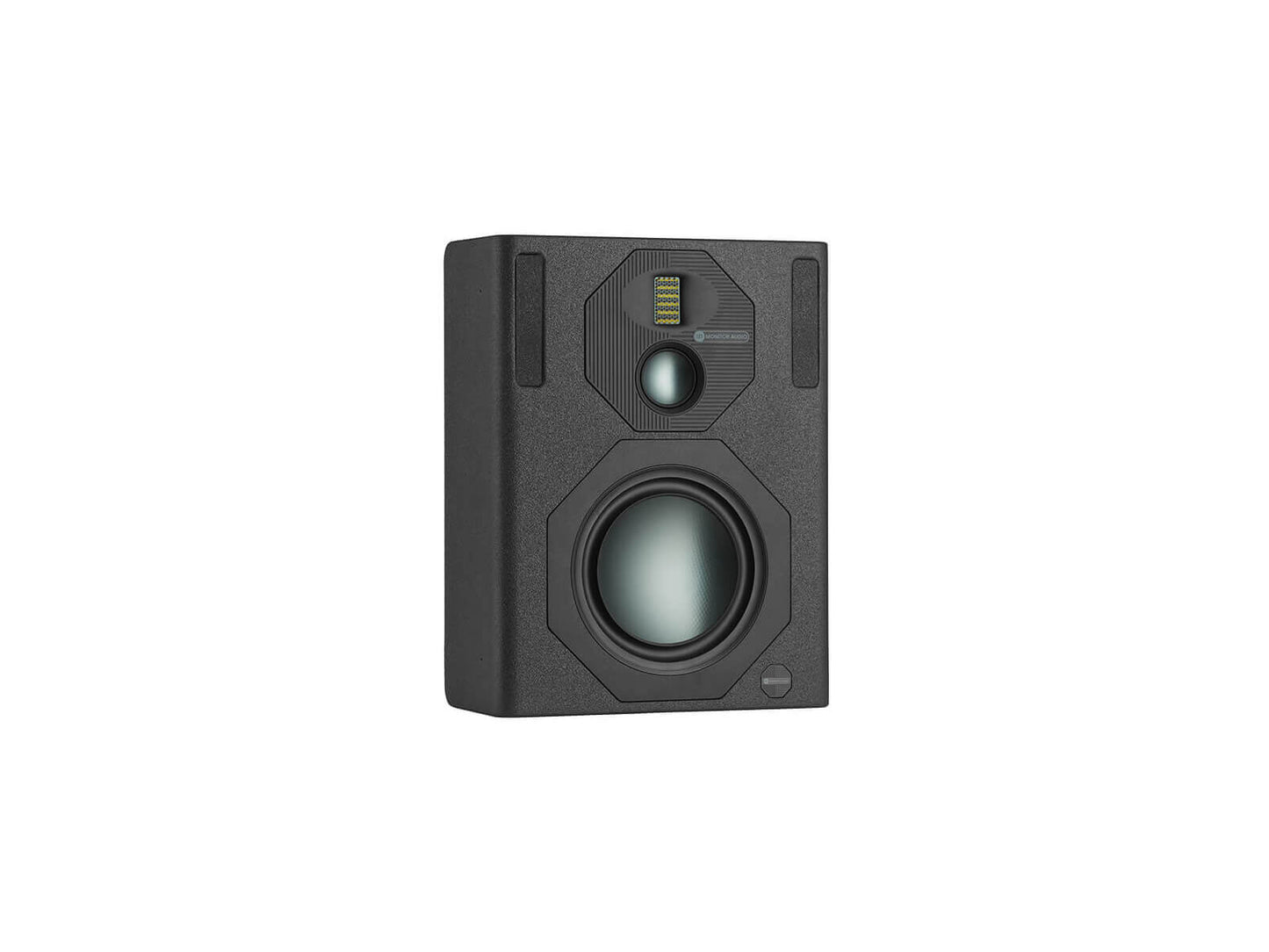

Cinergy 100 Hi-Fi Wall Speaker Monitor Audio - Unit

THX Certified THX® Certified Ultra System Format 3-Way Sensitivity (2.83 Vrms @ 1 M) 89 dB Maximum Linear SPL**** (@1 m, headroom) Continuous 103 dB, Peak 116 dB Power Handling ( RMS) Continuous 200 W, Peak* 800 W Nominal impedance 4 ohms Minimum impedance (20 Hz - 20 kHz) 3.8 ohms Recommended low frequency crossover frequency 80 - 100 Hz (high pass) Recommended amperage requirements (RMS) 100 - 800 W (IA750-2 or IA750-4 ) Bass Alignment Ported** Port Tuning Frequency 67 Hz** LF Extension, in-wall, with port plugs (-6 dB) 48 Hz LF Extension, in free space, without port plugs (-6 dB) 65 Hz HF extension (-6 dB) >30 kHz Drive Unit Plug-in 1 8" RDT driver 1 2.5" C-CAM driver 1 MPD
Transducer External Dimensions (Cabinet Only (H x W x D)) 460 x 350 x 160 mm (181/8 x
133/4 x 65/16") External dimensions (including grille) (H x W x D) 460 x 350 x 174.1 mm (181/8 x
133/4 x 67/8") Weight 18.4 kg (40 lb 8 oz) Conditions * Calculated from a maximum voltage, this is not an actual power rating
figure but useful for comparisons. **When used on wall or on wall.
configuration, it is recommended to use the installed port plugs to control
bass output. This will effectively turn the product into a sealed box. *** Band
limited with low pass at 200 Hz, should only be used with IA800-2C and the
correct speaker profile. ****Tested with a music-like noise signal with
Distortion and power compression remain below audible limits. THX THX® certified speakers. THX® and the THX® logo are property
from THX® Ltd., registered in the USA and other countries.
