CMS15T Apart Two-Way Speaker - Commercial Audio Promotion
CMS15T Apart Two-Way Speaker - Commercial Audio Promotion
Couldn't load pickup availability
DESCRIPTION

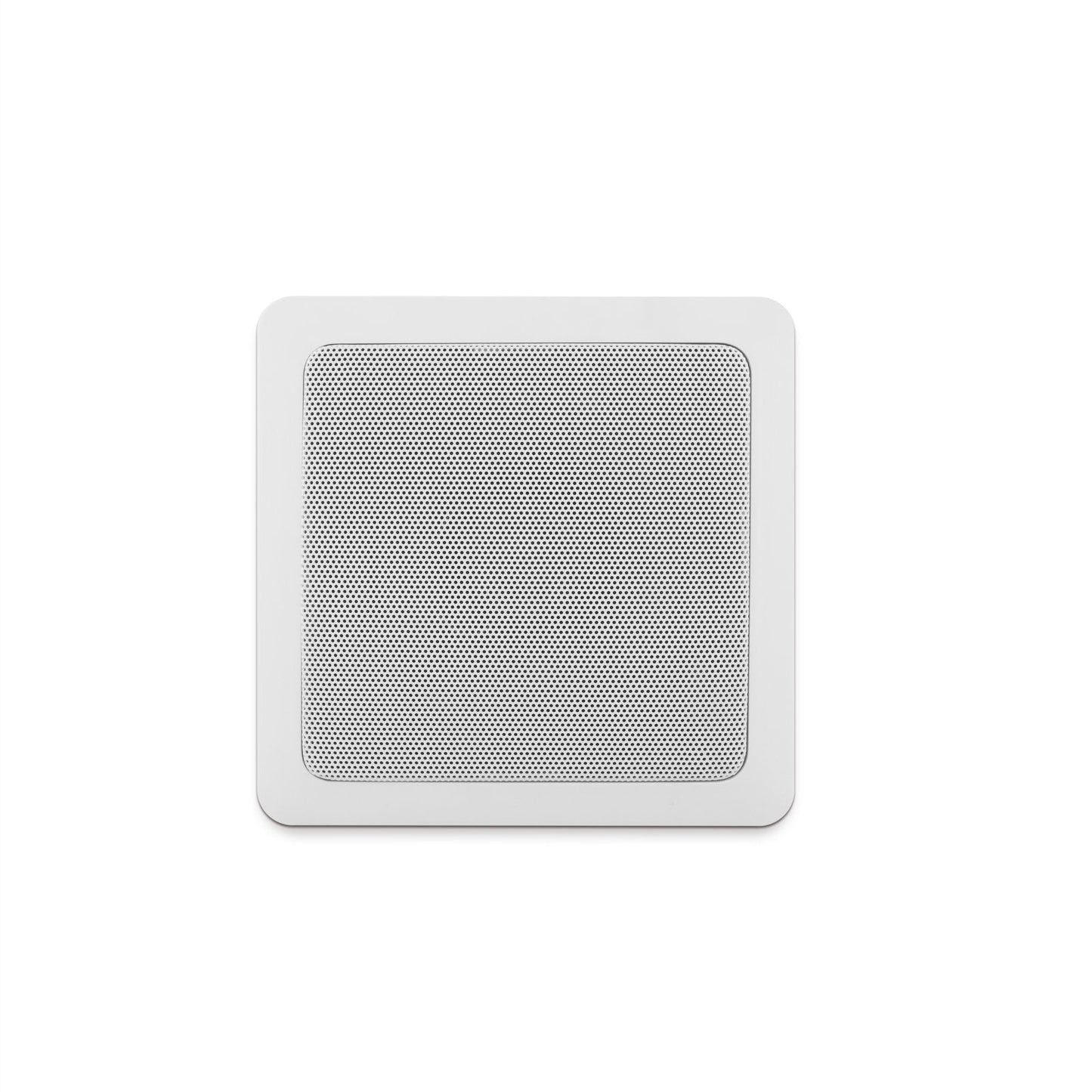

CMS15T Apart: It is a 100-volt two-way square in-wall speaker that is loved by all interior designers for its beautiful shape, ease of integration and perfect sound quality.
This speaker has a 5.25” polypropylene woofer and a 1” tweeter. It makes the CMS15T very suitable for background music distribution and microphone calls. The speaker is easy to install thanks to its quick and simple mounting system with 4 screws hidden behind the grille.
DATA SHEET
| SPECIFICATIONS | |||
| height | 171mm | width | 171mm |
| depth | 66mm | pull apart | 148 x 148mm |
| installation grip range | 3 - 28mm | speaker system | 2 way |
| woofer size | 5.25 inches | woofer cone material | Polypropylene |
| tweeter size | 1 inch | mounting system | 4 screws |
| 100V Transformer Power Transformers | 15 - 10 - 5 - 2.5 watts | impedance | 16 ohms |
| low impedance dynamic power | 50 watts | low impedance RMS power | 35 watts |
| SPL 1W/1m | 82 dB | max SPL 1m | 100dB |
| frequent response | 60 - 20KHz | main construction material | ABS plastic |
| grill main material | aluminum | IP Rating | 54 |
| applicable low impedance | Yeah | applicable at 100V | Yeah |
| Vertical dispersion angle 1000 Hz | 180° | Nearest RAL color (subject to deviations) | RAL9010 |
| Product net weight | 1.20kg |
CHARACTERISTICS
The housing is made of high quality ABS, the removable grille is made of aluminum and the woofer is made of reinforced polypropylene: 3 elements that make this speaker moisture resistant and also suitable for humid environments!
CMS15T speakers can be painted in any color. An optional wall backbox is available (CMS5BBI).
