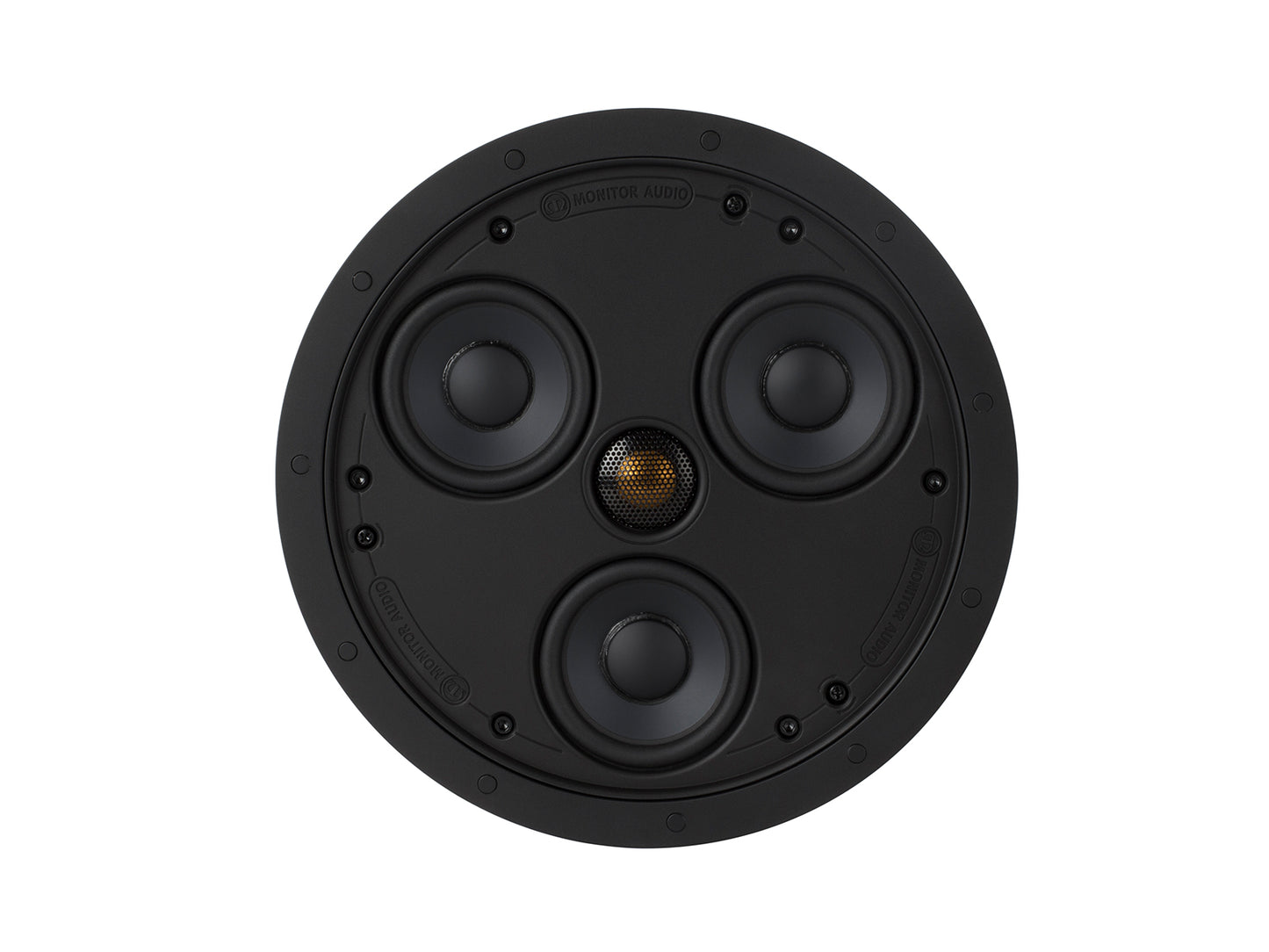

CSS230 Hi-Fi Ceiling Speaker Monitor Audio - Unit

Frequency response (-6 dB) 100 Hz – 30 kHz 'CP' sealed (85 Hz – 30 kHz
–open back) Nominal impedance 8 ohms Sensitivity (1 W at 1 M) 86 dB Maximum SPL 103.8 dBA Power Handling (RMS) 40 Watts – Full Range (60 Watts with crossover set to
100 Hz at 12 dB/octave) Recommended Amplifier Requirements 10 - 60 W Drive Unit Plug-in 3 x 1 x 19 mm (3/4") C-CAM 3" Cone Mid/Bass Drivers
C-CAM Gold Dome Tweeter Crossover recommendation 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave
optimal) Connection Gold plated spring-loaded push terminals – for bare wire connection upwards
to 4 mm(2) Overall diameter (including grate) 250 mm (913/16") Overall depth (including grate) 54 mm (21/8") Cutting hole diameter 211 mm (81/4") Depth Mounting Width 50 mm (2") Optional Square Grille - Outside Dimensions 249 x 249 mm (9 3/16") Attachment Type 3-Position Tri-Grip Dog Leg Fixings Construction Material ABS (UL94 Rated, RoHS2 Compliant ) – Painted steel
Rack Weight 6 lb 5 oz (2.88 kg) Pre-Build Support CB6 Pre-Build Support (Purple) Sold as a single unit
