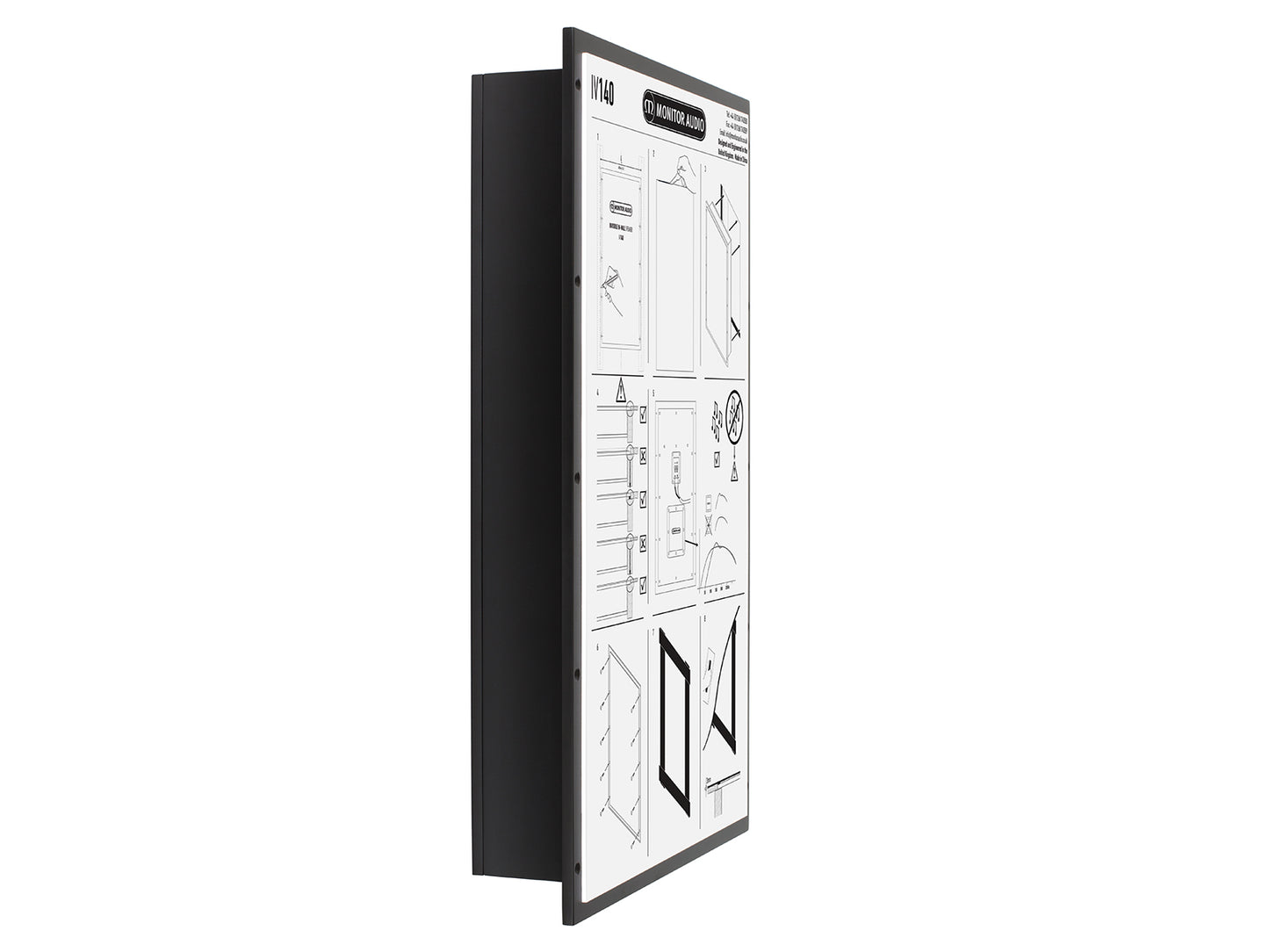

IV140 Hi-Fi Wall Speaker Monitor Audio - Unit

Frequency response (-6 dB) 75 Hz — 18 kHz (sealed CP) 55 Hz — 18 kHz (open
back) Sensitivity (1W@1M) 82 dB (when installed according to instructions) Nominal impedance 8 ohms Maximum SPL 102.8 dBA Power handling (RMS) 50 watts (full range – IEC268-5 rating) 100 watts
Music program (using a minimum 80 Hz high-pass filter) Recommended amplifier requirements 20-50 watts (full range) 20-100 watts
(Using a minimum 80Hz high pass filter) Drive Unit Complement 1 x Low Frequency Transducer 2 x High Frequency
Transducer overall dimensions (including grille (H x W x D)) 642 x 401.5 mm (251/4 x
1513/16") Overall Depth 106 mm (43/16") Cut Out Dimensions 591 x 350.5 mm (231/4 x 1313/16") Mounting Depth 94 mm (311/16") Connection Spring Type Terminals - Gold plated Fixing type Self-tapping screw Construction material 9mm MDF Color/Finish White and black painted membrane Pre-construction support WBIV140 Pre-construction support Weight 9 kg (20 lb) Sold as a single unit
