Opti-voice® paging equalizes vocal frequency range for clear speech intelligibility while providing seamless transitions
IZA 2120-LZ Bose Audio Mixer Amplifier, Commercial Promotion
IZA 2120-LZ Bose Audio Mixer Amplifier, Commercial Promotion

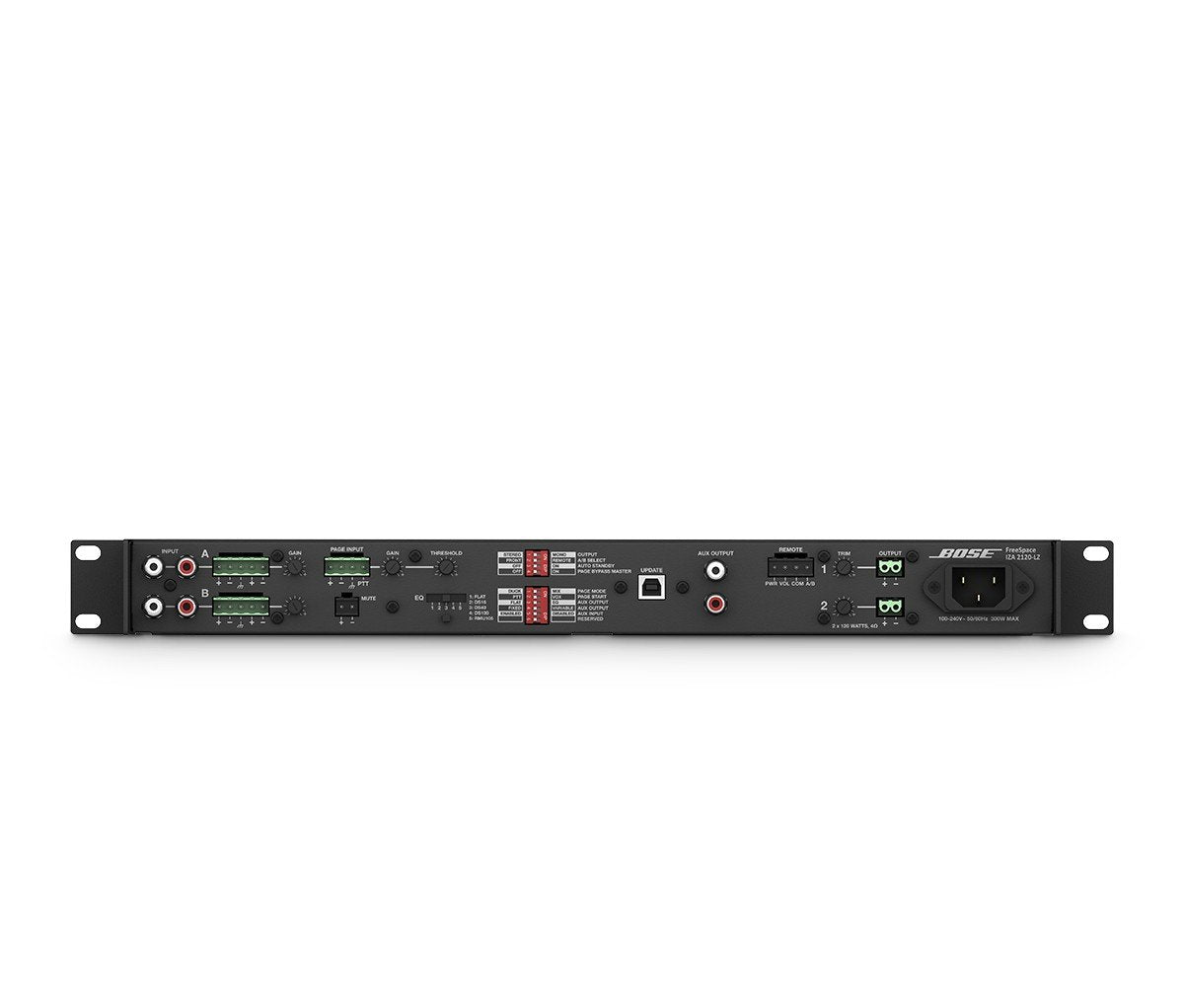

FREESPACE® IZA 2120-LZ INTEGRATED ZONE AMPLIFIER
For background/foreground music and location applications, the Bose® FreeSpace® IZA 2120-LZ integrated zone amplifier elevates the audio experience when using FreeSpace® speakers. Optimized for commercial applications, FreeSpace IZA amplifiers feature a selectable speaker equalizer to enrich audio quality, Opti-voice® paging for clear speech intelligibility while providing smooth transitions, and a dynamic equalizer that ensures complete and balanced music at any volume level.
CHARACTERISTICS
Dynamic EQ guarantees full and balanced music at any volume level
Independent speaker equalizer per output enriches audio quality and simplifies connection to Bose® speakers: FreeSpace® 3 systems, FS3 subwoofer, DS 16, DS 40 and DS 100
The option remote for volume/source selection eliminates the need for bulky, inefficient, and sound-disrupting inline volume controls
Dual remote controls Support optional volume/source selection for independent or combined zone control, eliminating the need for bulky, inefficient and sound-disrupting 70/100V in-line volume controls
Connectivity ready for expansion with FreeSpace ZA amplifiers to drive additional zones
Reliable 2 x 120W Class D amplification optimized for low impedance applications
Intuitive feature setup allows the amplifier to be configured without a PC for output options, remote control, paging, auxiliary input/output and auto standby
The automatic standby function allows you allows the amplifier to consume less power when not in use

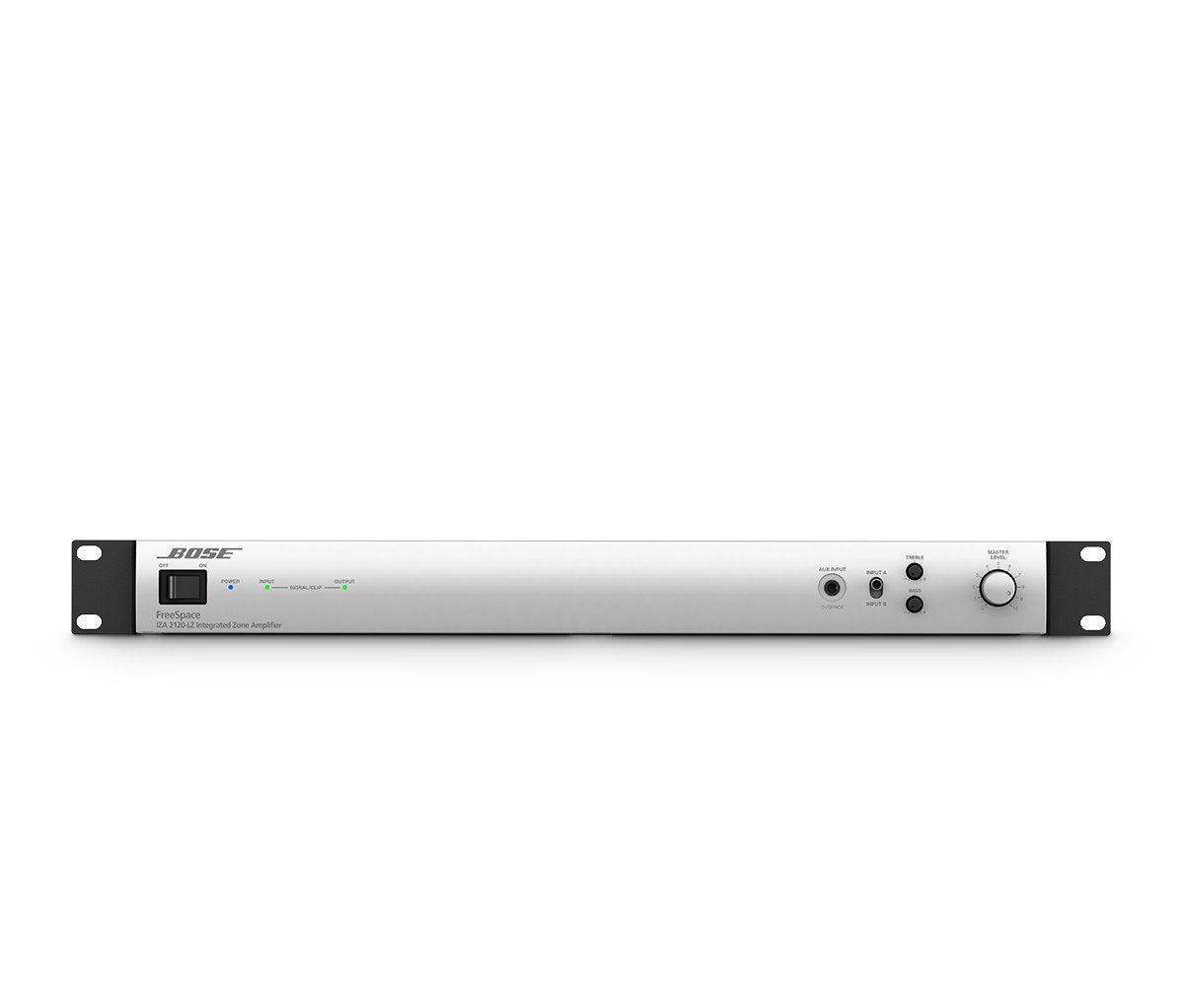

The simplified front panel interface provides end users with tone, source selection and master volume controls, as well as a connection to mobile sources via a 3.5mm jack
Remote muting It allows mute the amplifier through a centralized control system
Applications
- Retail stores
- Restaurants and bars
- Hospitality venues
- Conference centers
- Schools
- Auxiliary zones
DATA SHEET
Frequency response
20 Hz - 20 kHz (+0 / –3 dB, at 1 W reference 1 kHz)
Amplifier power
2 x 120W @ 4Ω, 2 x 60W @ 8Ω
THD+N
≤ 0.5% (at rated power)
Dynamic range
88 dB
Built-in speakers EQ
Bose FreeSpace® 3 systems, FS3, DS 16, DS 40 and DS 100 subwoofer
Input channels
Line inputs: 2 unbalanced, 2 balanced
Input page: 1 balanced mic/line
Auxiliary input: 1 unbalanced line
