DESCRIPTION

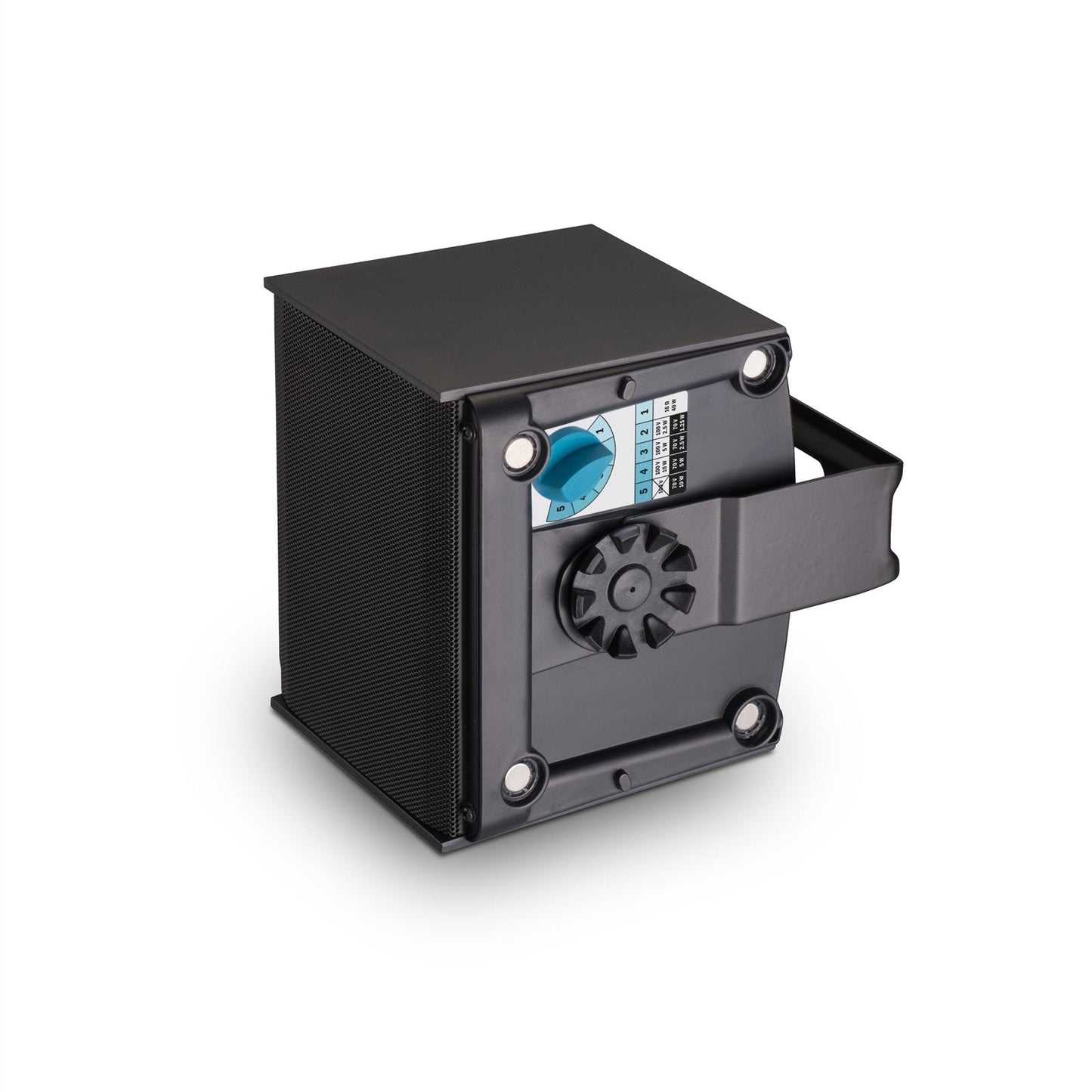

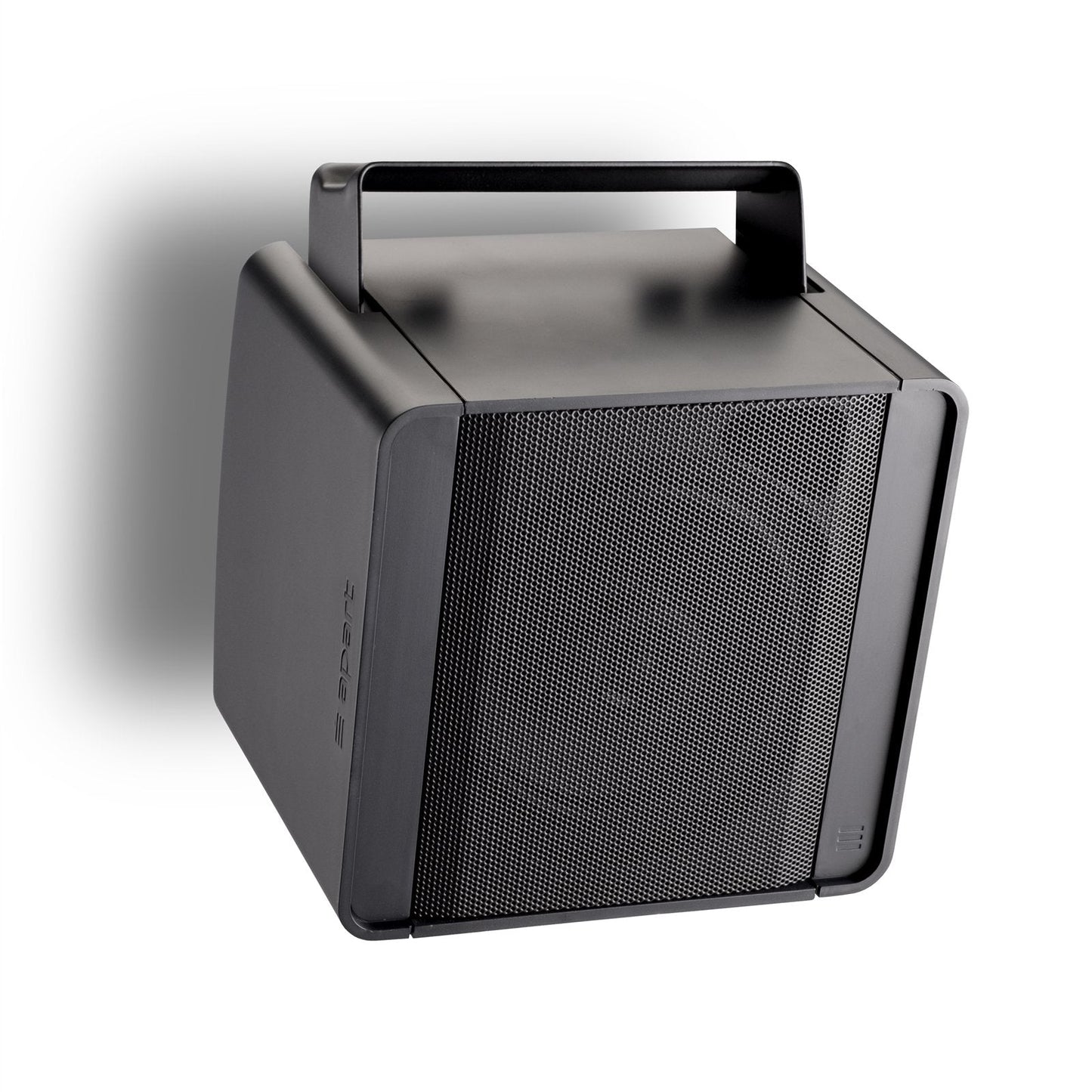

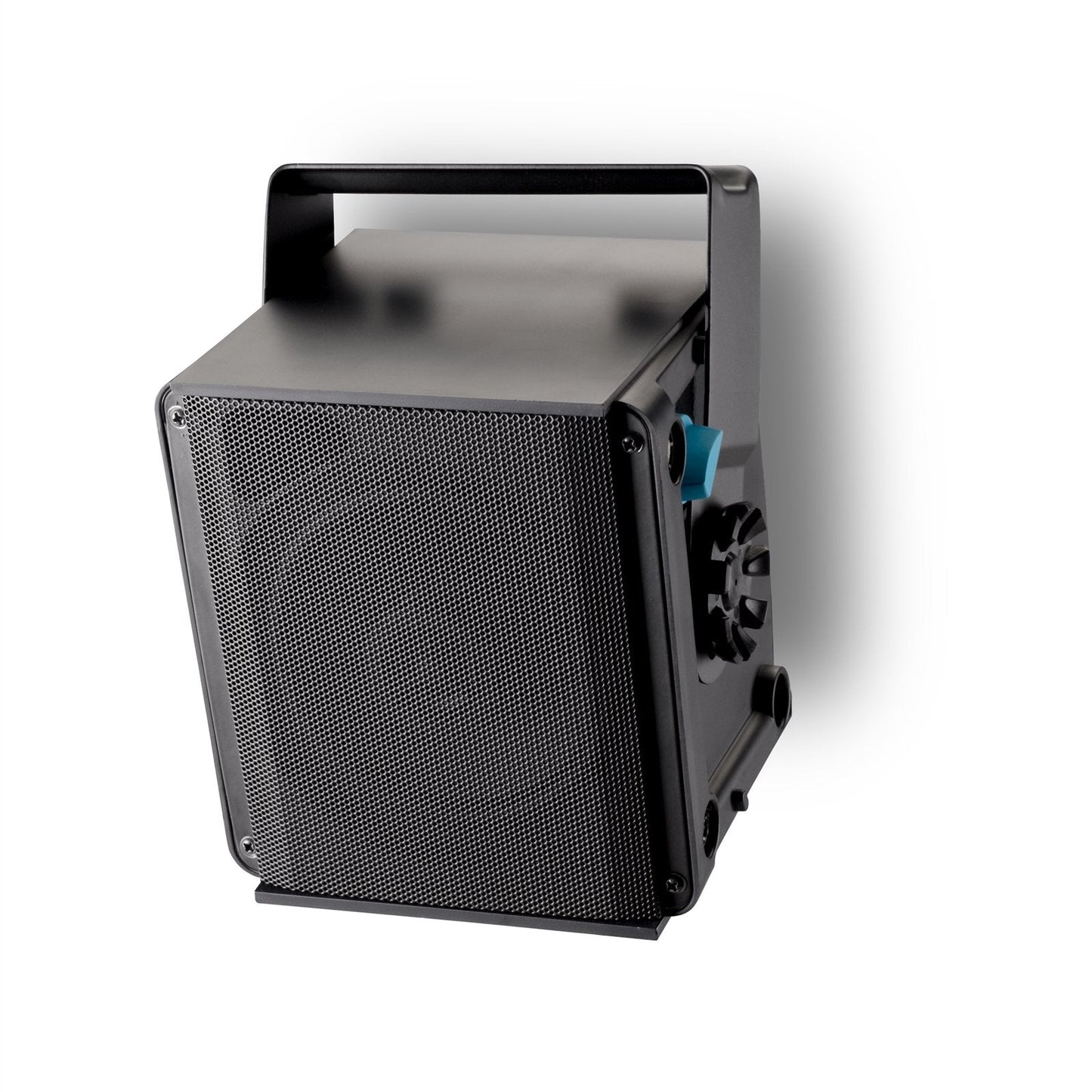

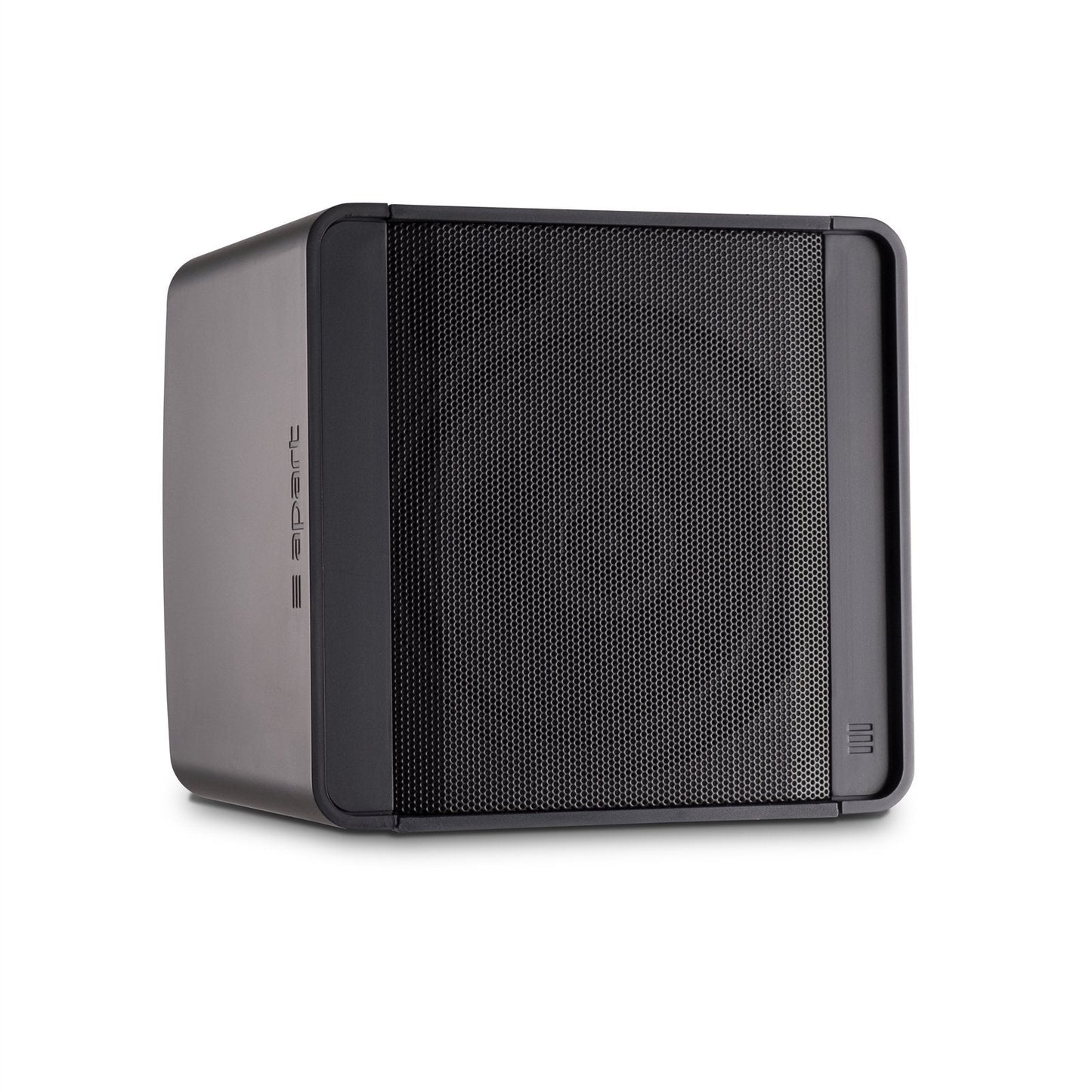

The symmetrically cube-shaped designed KUBO3T comes with a 3" full-range driver unit and a bass reflex port. It can be used as a 16/100 volt, 70/100 volt or low impedance speaker producing up to 40 watts of dynamic power. The K mounting bracket offers easy cable management and 140° vertical or horizontal mounting flexibility. Combined with the specially designed K fixing screws, you can install the speaker safely and conveniently on any type of wall or ceiling.
DATA SHEET
| SPECIFICATIONS | |||
| height | 125mm | width | 131mm |
| depth | 109mm | speaker system | Full range |
| woofer size | 3 inches | woofer cone material | Polypropylene |
| mounting system | U bracket | 100V Transformer Power Transformers | 10 - 5 - 2.5 watts |
| 70V Transformer Power Transformers | 10 - 5 - 2.5 - 1.25 watts | impedance (ohms) | sixteen |
| low impedance dynamic power | 40 watts | low impedance RMS power | 25 watts |
| SPL 1W/1m | 89 dB | max SPL 1m | 101 dB |
| frequent response | 94 - 20KHz | main construction material | ABS plastic |
| grill main material | steel | IP Rating | 40 |
| Horizontal dispersion angle 1000 Hz | 180° | Vertical dispersion angle 1000 Hz | 180° |
| Nearest RAL color (subject to deviations) | RAL9016 (W) / RAL9011 (BL) | Product net weight (kg) | 1.18 |
CHARACTERISTICS
Easy daisy chaining of multiple KUBO speakers can be done via input and link connection with Euroblock connectors. Installer-friendly closure caps, held by 14 built-in strong neodymium magnets, hide all connections and bracket hardware on both sides.
