MA240 Apart Mixing Amplifier - Commercial Audio
MA240 Apart Mixing Amplifier - Commercial Audio
Regular price
$523.00 USD
Regular price
$750.00 USD
Sale price
$523.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
DESCRIPTION
The revolutionary MA240 19" mixing amplifier delivers 240 watts in 70 or 100 volt mode and comes with 2 line/mic inputs and 4 stereo line, mono summed inputs. On the back you can find an intelligent power priority system. 4 left-to-right levels of audio routing, an emergency input, a radio paging microphone with a buzzer, and a 24V DC override output. The MA240 has an intuitive, unseen interface and an innovative panel logical rear.The installation or operation of this amplifier is a real pleasure for all installers and end users around the world.
DATA SHEET
SPECIFICATIONS | |||
19" rack mount (483mm wide) | Yeah | Height units (1U = 44mm) | 2U |
depth (build in) | 290mm | depth (incl front) | 300mm |
power supply | 100 - 240 VAC | power consumption (max) | 320 watts |
RMS output power 100 volts | 240 watts | RMS output power 4 ohms | 240 watts |
Dynamic output power 100 volts. | 240 watts | minimum impedance load | 4 ohms |
power output sockets | 70 - 100 volts - 4 ohms | zone exits | 1 |
Balanced MIC inputs | 3 | phantom powered inputs | 2 |
unbalanced line input | 4 | tone control | Yeah |
priority switch | 2 | VOX mute | Yeah |
ring | Yeah | emergency entrance | 1 |
priority exit | 1 | priority levels | 4 |
power amplifier topology | class D | frequency response (in Hz) | 60 - 20k |
refrigeration system | convection | applicable at 100V | Yeah |
applicable low impedance | Yeah | Product net weight (kg) | 6 |
CHARACTERISTICS
COMPACT 240W AMPLIFIER, MA240.
Compartir

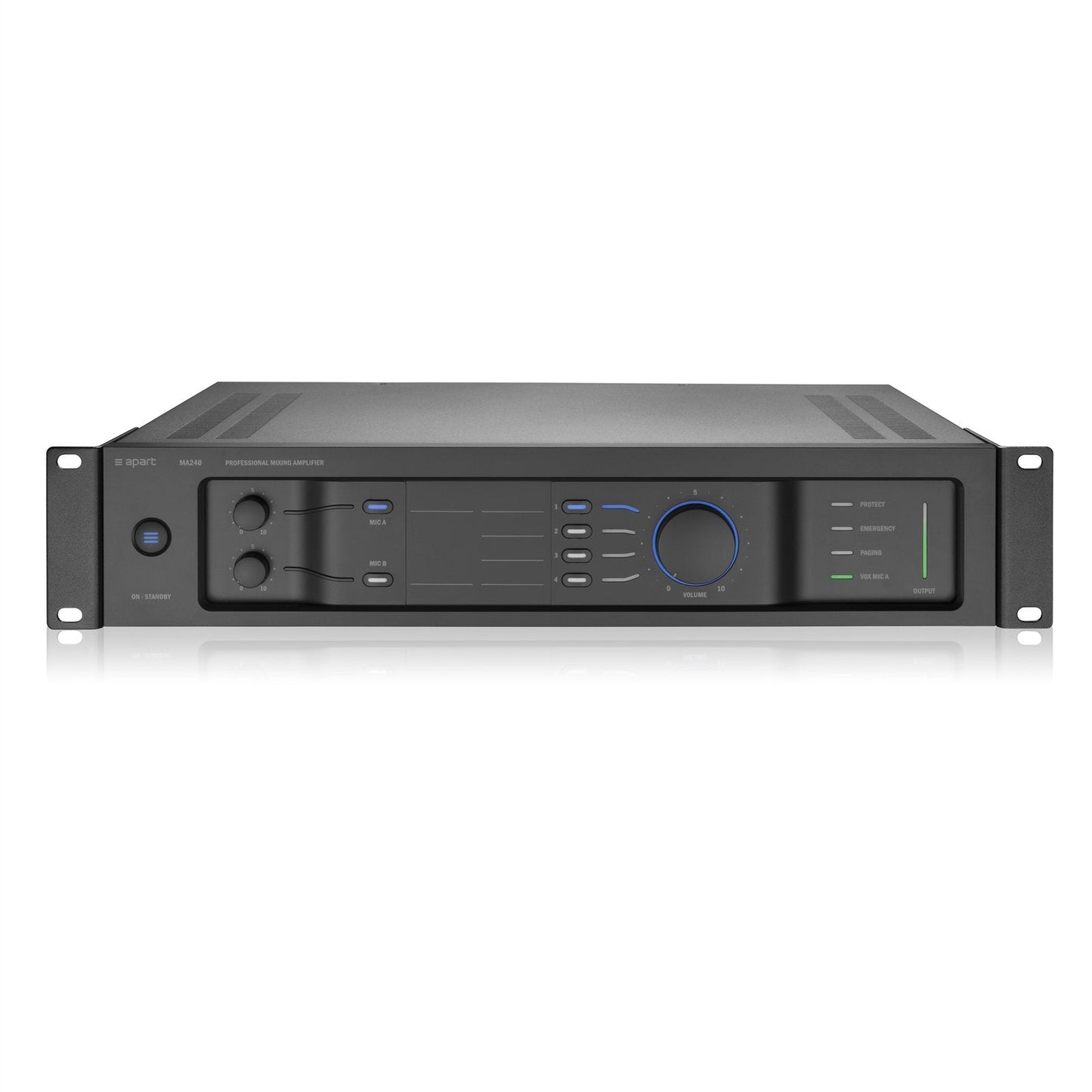

![MA240 Apart Amplificador de Mezcla - Audio Comercial Promoción - klibtech](http://klibtech.com/cdn/shop/files/ma240-apart-amplificador-de-mezcla-audio-comercial-klibtech-1_6b74b957-ff8f-4d77-b597-7737d4244ab2.jpg?v=1692492427&width=1445)

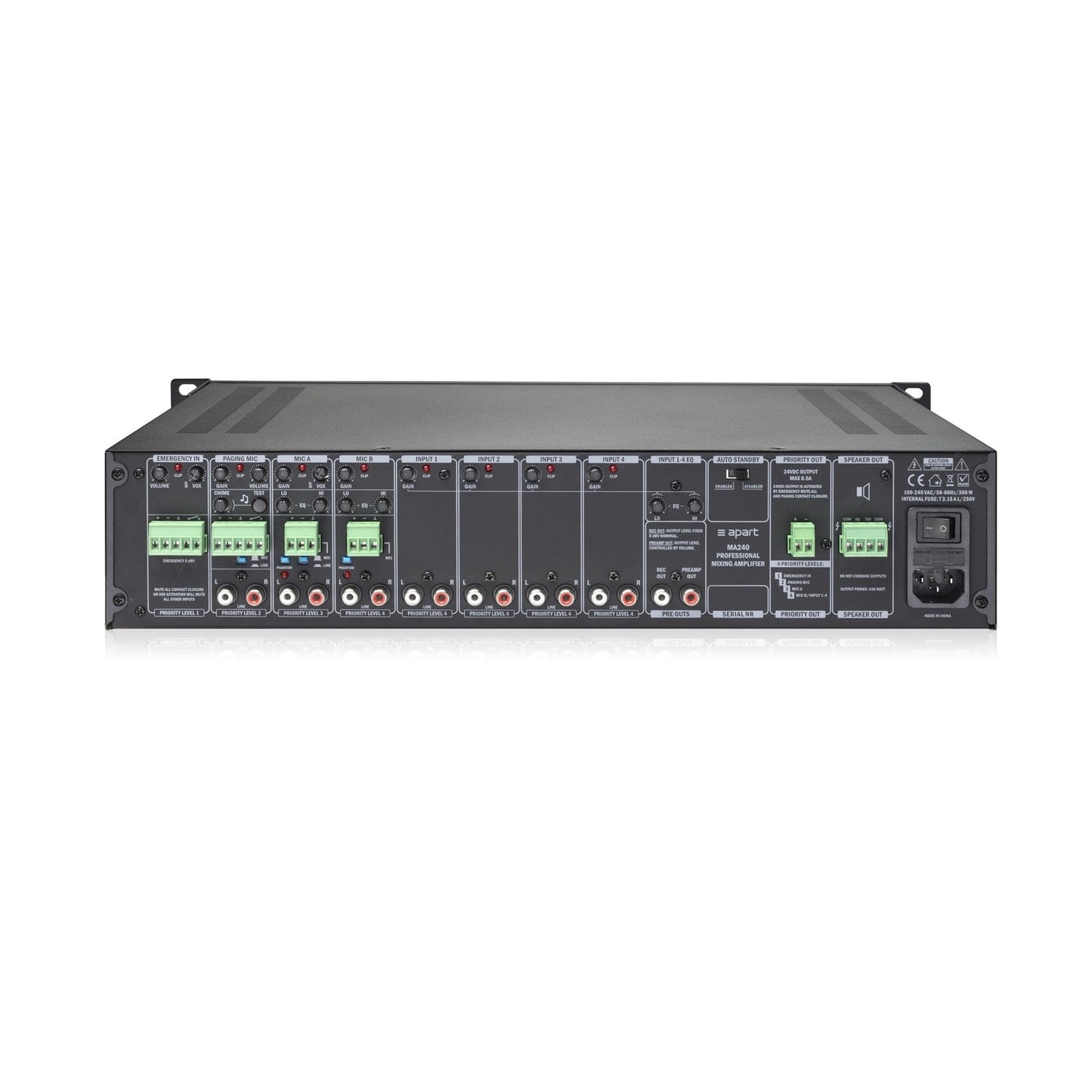

![MA240 Apart Amplificador de Mezcla - Audio Comercial Promoción - klibtech](http://klibtech.com/cdn/shop/files/ma240-apart-amplificador-de-mezcla-audio-comercial-klibtech-2_6d049a0a-03fe-4a24-a726-cf030d07bcbf.jpg?v=1692492430&width=1445)
