DESCRIPTION

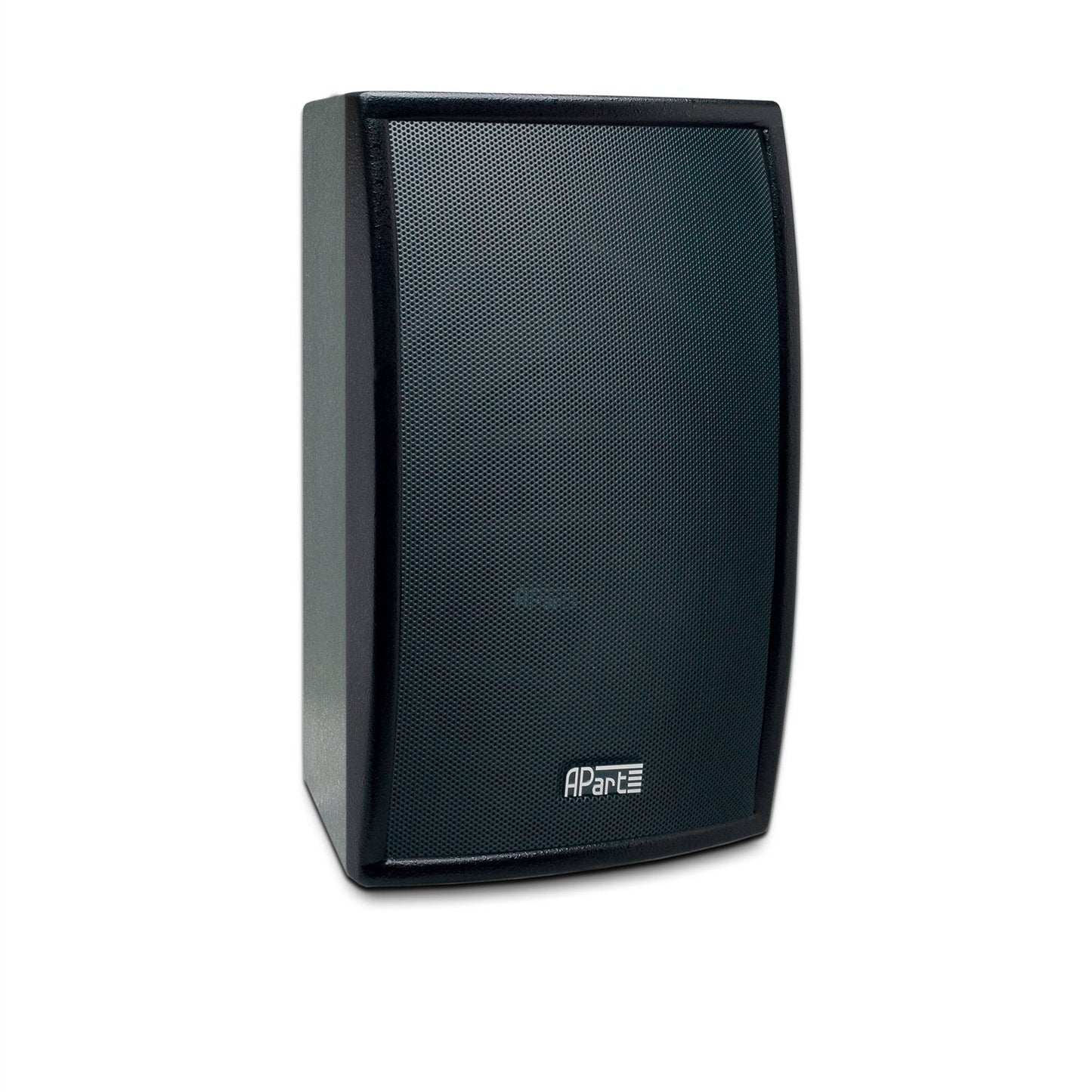

MASK8F has a very powerful 8” coated paper cone woofer. Coupled with the Ferro-fluid cooled silk dome tweeter in a waveguide horn, this results in high SPL, ultra-low distortion, and sound that approaches studio monitor quality. The built-in 2-step auto-reset protection shield, along with quality components, make MASK8F a fail-safe speaker, even under high-power loads. After mounting the bracket on the wall, the sleeve on the bracket makes it very easy and secure to fix the MASK8F speakers, even in awkward positions. The cabinet has several threaded mounting points on the back, top, and side of the cabinet. This way the cabinet can be installed or mounting clamps can be used. An added contractor advantage! MASK8F also has a pole mount adapter on its bottom. This adapter makes it possible to mount the speaker on a standard 35mm pole, such as the Apart STSUB and the STT. MASK8F is delivered with a metal U-mounting bracket.
DATA SHEET
SPECIFICATIONS | |||
height | 411mm | width | 250mm |
depth | 250mm | speaker system | 2 way |
woofer size | 8 inches | woofer cone material | paper |
tweeter size | 1 inch | mounting system | U bracket |
impedance (ohms) | 8 | low impedance dynamic power | 300 watts |
low impedance RMS power | 200 watts | SPL 1W/1m | 90 dB |
max SPL 1m | 112 dB | frequent response | 50 - 25KHz |
main construction material | mdf wood | grill main material | steel |
IP Rating | 40 | Horizontal dispersion angle 1000 Hz | 150° |
Vertical dispersion angle 1000 Hz | 160° | Nearest RAL color (subject to deviations) | RAL9003 (W) / RAL9011 (BL) |
Product net weight (kg) | 9.75 |
CHARACTERISTICS
The Apart MASK8F is a robust 8" two-way full range low impedance speaker with timeless design suitable for background music up to "dance level" music. This wooden cabinet speaker is specially designed to produce full hi-fi sound at a higher power level without using a subwoofer.
