Midas

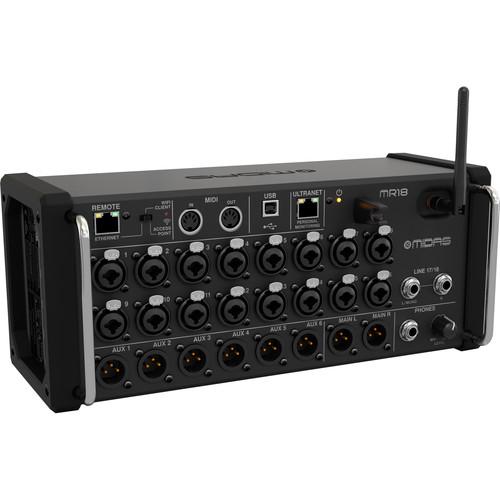

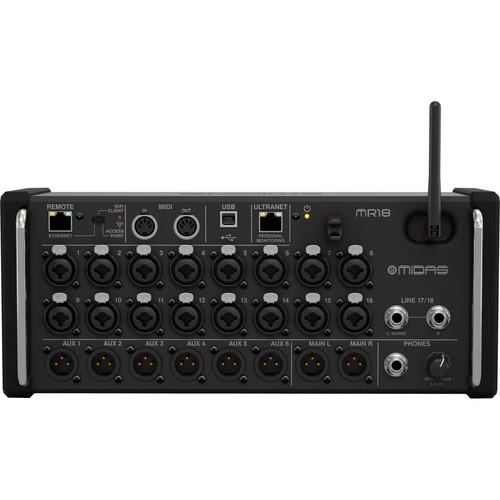

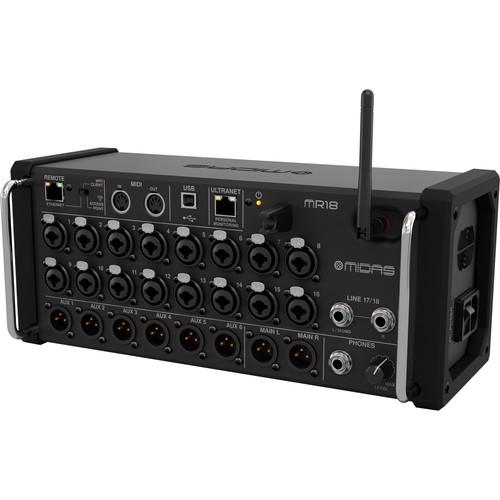

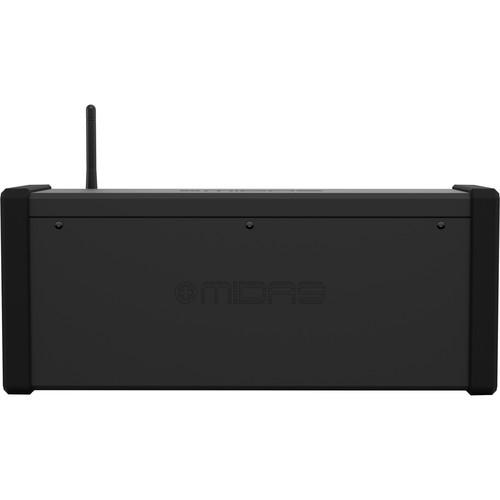

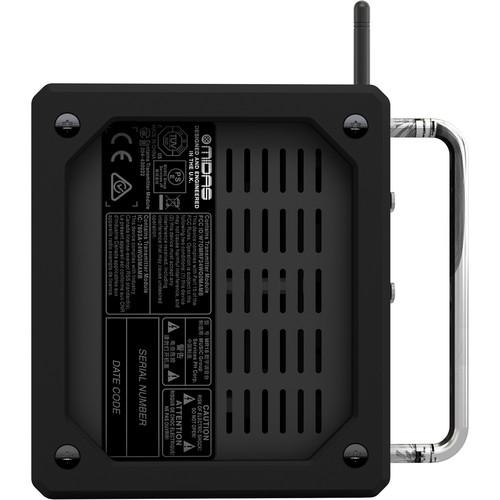

MR18 Midas Mixer Console - Professional Audio

MR18 Midas Mixer Console - Professional Audio

Regular price $1,055.00 USD
Regular price Sale price $1,055.00 USD
Sale Sold out
Shipping calculated at checkout.

Description of Midas MR18

He MR18 of Midas is an 18-input, portable, rack-mountable mixer for iPad and Android tablets. It can be used for studio and live environments in applications for live stages, theaters, houses of worship, rehearsals and more. It features sixteen Midas mic preamps and an integrated Wi-Fi module for wireless control, giving you the ability to move around and manipulate all the parameters of your mix. In addition, it has USB connectivity for file storage and future system updates. The built-in 18 x 18 channel bi-directional USB interface makes the MR18 a powerful digital mixing solution for recording directly to your iPad or Windows computer. You can then dial in a monitoring mix with effects and zero latency while sending your stereo mix and MIDI notes from the keyboard player to your DAW for recording.

The MR18 has additional features including MIDI In/Out jack for controlling the mixer via MIDI equipment, using the Mackie control protocol via a live performance controller. This mixer also comes with several Midas effects, such as a Leisure compressor and leveling amplifier, a Fair/mid side compressor, a 5-band Combinator compressor, a Modulation Delay, a Sub Octaver, and an Edison EX1 that allows for manipulation. simple stereo field. Finally, the MR18 includes Sound Maxer and a dimensional chorus effect, which can help you restore the natural brightness and clarity of the original audio signal. Whether you're recording in the studio or want to capture intimate live performances, it's never been easier to clearly record professional-sounding tracks.

  • 18-input digital mixer controlled by iPad/Android tablet for studio and live applications
  • 16 high-quality MIDAS PRO microphone preamps
  • Built-in three-mode Wi-Fi router for direct operation, no need for external routers
  • Dugan-style automix automatically manages mic gain sharing
  • 18 x 18 channels, bi-directional USB 2.0 interface
  • 4 digital signal processing effects engines.
  • Rack ears and protective guards included for flexible rack and on-stage applications
  • 6 aux buses and main LR with inserts, full dynamic processing, and 6-band or 31-band parametric EQ
  • 6 XLR auxiliary outputs and 2 XLR main outputs, plus a headphone jack
  • 40-bit floating point digital signal processing.
  • Free apps for iOS, Android and Windows/Mac/Linux available for remote operation over Ethernet, LAN or Wi-Fi
  • MIDI in/out ports allow control of the mixer through MIDI equipment
  • Future firmware updates, including new FX plug-ins, downloadable for free
  • Auto Range Universal Switching Mode Power Supply
  • 1 year limited warranty

Midas MR18 Specifications

Treatment
The channels Number of processing channels: 18 input channels
Stereo FX Return Channels: 4
Auxiliary buses: 6
Main: 2 (L, R)
Effects engine Internal effects engines: 4 true stereo.
Signal processing 40 bit floating point
AD/DA conversion 24 bits at 44.1/48 kHz, 115 dB dynamic range
Latency Analog I/O latency: 0.8 ms
Connectors
microphone inputs Programmable mic preamps (designed by Midas Pro): 16 XLR/TRS combo jacks, balanced
Line inputs 2 x 1/4"/6.35mm TRS, balanced
Main outputs 2 x XLR, balanced
AUX outputs 6 x 1/4"/6.35mm TRS, balanced
Headphone output 1 x 1/4"/6.35mm TRS, balanced
MIDI In: 5 pin DIN
Out: 5 pin DIN
ethernet 1 x RJ45
USB port Type B (audio/MIDI interface)
Input/Output Features
Microphone Features Preamp Design: Midas Pro
THD+Noise: 0.005%, unweighted (noise, unity gain, 0 dBu, 1 kHz)
Phantom Power: 48V (switchable per input)
EIN Noise: -125 dBu, 22 Hz - 22 kHz unweighted (at +60 dB gain, 150R source)
CMRR, XLR (1 kHz @ Unity Gain): Typically 65 dB
CMRR, XLR, (1 kHz @ +60 dB gain): Typically 90 dB
In and out Frequency range: 20 Hz - 20 kHz (at 48 kHz sampling rate, +/- 0.5 dB)
Dynamic Range: 107 dB, 22 Hz - 22 kHz unweighted (analog input to analog output)
A/D Dynamic Range: 110 dB, 22 Hz - 22 kHz unweighted (preamplifier to converter)
D/A Dynamic Range: 111 dB, 22 Hz - 22 kHz unweighted (converter and output)
Cross talk rejection: 90 dB (at 1 kHz, adjacent channels)
Mic/Line 1-16 Input impedance 10 kOhm (XLR connector, unbalanced/balanced)
Maximum input level without clip: +23.5 dBu (XLR)
Hi-Z input impedance: 1 MOhm / 2 MOhm (TRS connector, unbalanced / balanced)
Line input 5-10 impedance: 20 kOhm / 40 kOhm (TRS jack, unbalanced / balanced)
Maximum input level without clip: TRS +21 dBu
Analog output characteristics Output impedance (XLR/TRS): 50 ohms
Maximum Output Level (XLR/TRS): +21 dBu
Output impedance of phones: 50 ohms
Maximum output level of phones: +21 dBu
Noise at unity gain: -86 dBu, 22 Hz - 22 kHz unweighted (1 assigned input, XLR and TRS)
Noise when muted (XLR and TRS): -90 dBu, 22 Hz - 22 kHz unweighted
USB USB Audio/MIDI Interface: USB 2.0, Type-B

Supported operating systems
Windows 7 or higher
Mac OS X 10.6.8 or higher
iOS 7 or higher (IPAD)
Linux
Sampling supported: 44.1/48 kHz

/IO
/S audio channels 18 x 18
I/O MIDI channels 16 x 16 (1 port)
wireless LAN
WLAN Antenna: external, SMA connector,
access point 50 ohms (number of clients): 4
IEEE 802.11b/g maximum Standard: 2.4 GHz
Frequency range: 2412-2462 MHz
WLAN Channels: 1-11 (Wi-Fi Client, Access Point)
Maximum output power: 19 dBm (802.11 b) / 18 dBm (802.11 g)
General specifications

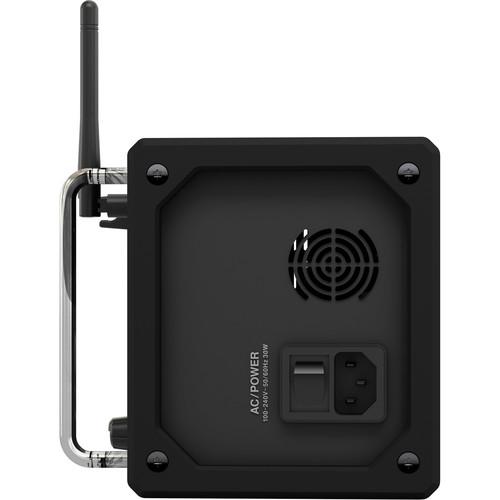

Can Power Supply: Switching Mode, Autorange 100-240V, (50/60Hz) Power Consumption: 30W
Temperature 41 to 104°F / 5 to 40°C
Dimensions 13.1 x 5.9 x 5.8" / 332.7 x 149.9 x 147.3mm
Weight 8.6lb / 3.9kg
Packaging information
package weight 9.6 pounds
Box dimensions (LxWxH) 15.0 x 8.4 x 7.7"
