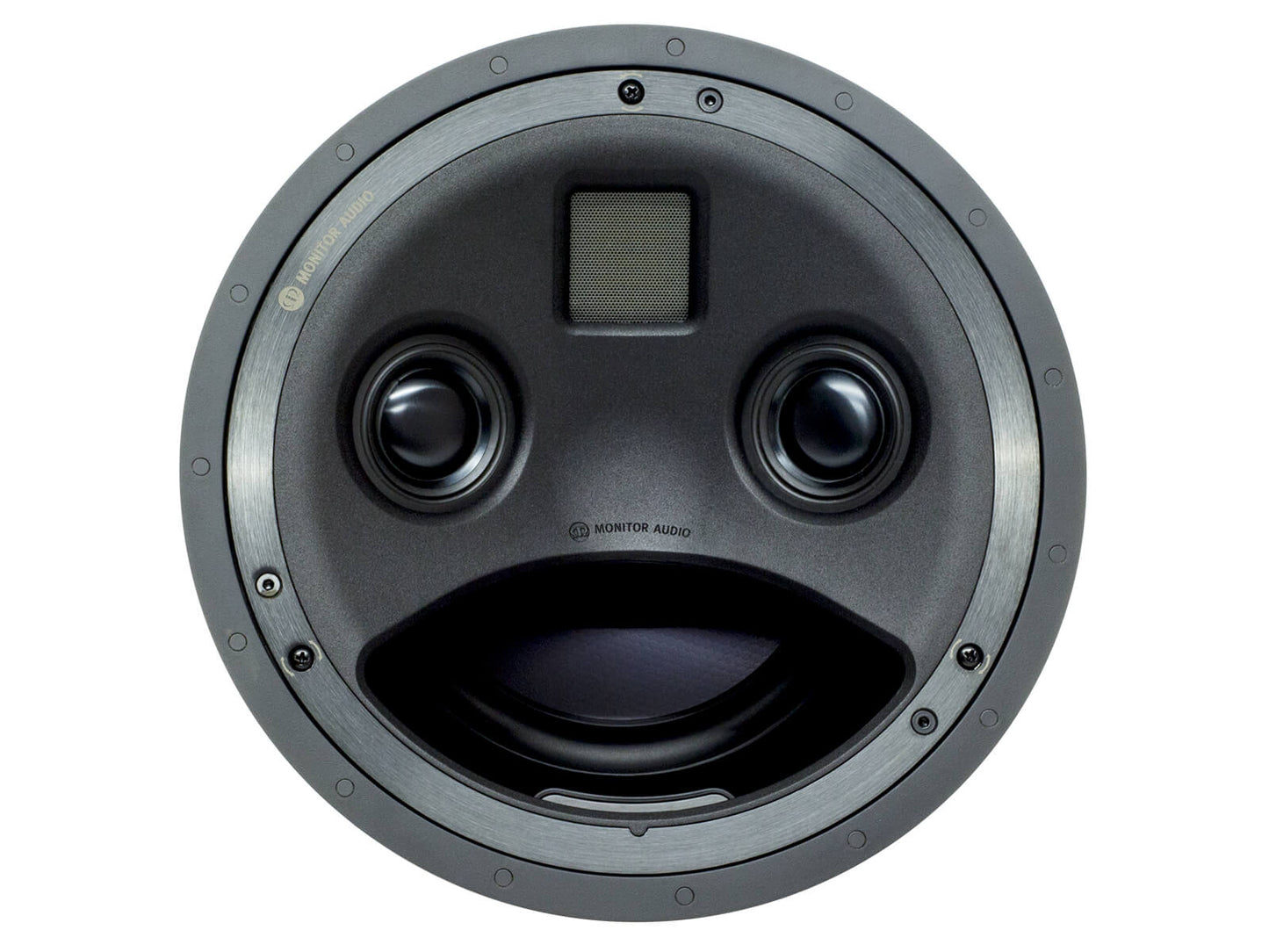

Platinum PLIC II Hi-Fi Wall Speaker Monitor Audio - Unit

System Format 3-way – 4 drivers Frequency response (-6 dB) 45 Hz – 60 kHz Sensitivity (1W@1M) 90 dB Maximum SPL 112 dBA Nominal impedance 4 ohms (3.1 ohms minimum at 1.1 KHz) Handling Power Rating (RMS) 150 W Recommended Amplifier Requirements 50 – 150 W Recommended PLIC-BOX II Enclosure or a Custom 24 Sealed Enclosure
liters Mid/HF crossover frequency 5.3 KHz 3rd order (18 dB/octave) Bass/mid crossover frequency (Hz) 380 Hz 4th order (24 dB/octave) Drive unit Add-on 1 x 8" RDT II Long Throw Bass Driver 2 x 2" C Cam
Midrange Drivers 1 MPD High Frequency Transducer Trim Controls HF Level Switch (+1 dB / 0 dB / -1 dB) MF Level Switch
(+1 dB / 0 dB / -1 dB) Connection High-end 'Push' terminals Fixing type 3-position Tri-Grip dog fixings Overall diameter - Grille on/off 309 mm (123/16") 296. 25 mm (1111/ 16") Overall Depth - Grille On/Off 191.5 mm (71/2") 188 mm (73/8") Construction Material Main Chassis: Mineral-Filled ABS (RoHS2 Compliant)
Baffle – Die-cast aluminum grille type Low profile frameless grille with magnetic fixings – Paintable
(square grille available as a cost option) Optional square grille - Outside dimensions 309 x 309 mm (123/16") Cutting hole diameter 273 mm (103/4") Mounting depth 185 mm (75/16") Weight (each) 5.22 kg (11 lb 8 oz) Pre-Build Bracket CB10 Pre-Build Bracket (Light Brown) PLIC-BOX II Backbox Sold as a single unit
