REVAMP2060T Apart Power Amplifier - Commercial Audio
REVAMP2060T Apart Power Amplifier - Commercial Audio
Couldn't load pickup availability
DESCRIPTION

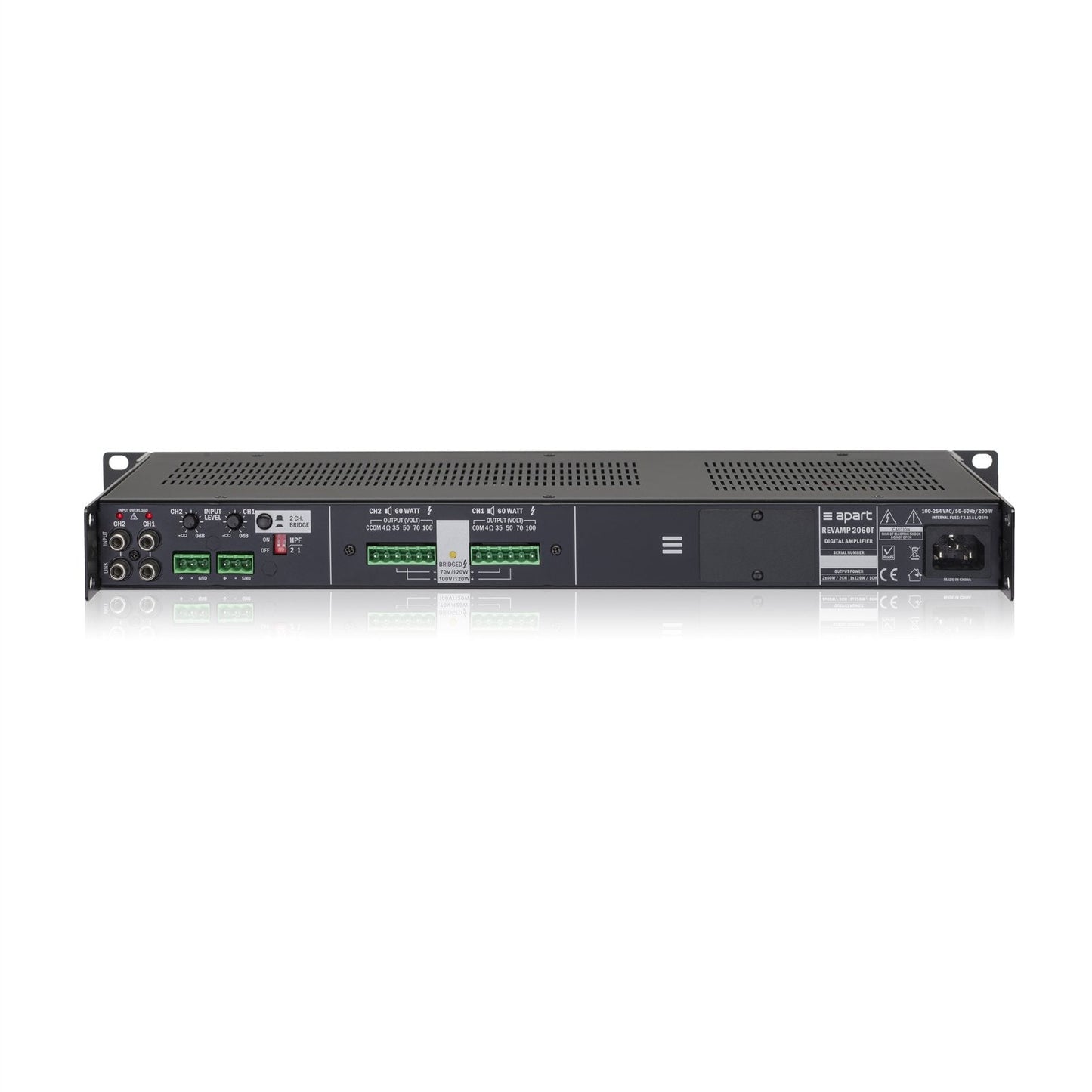

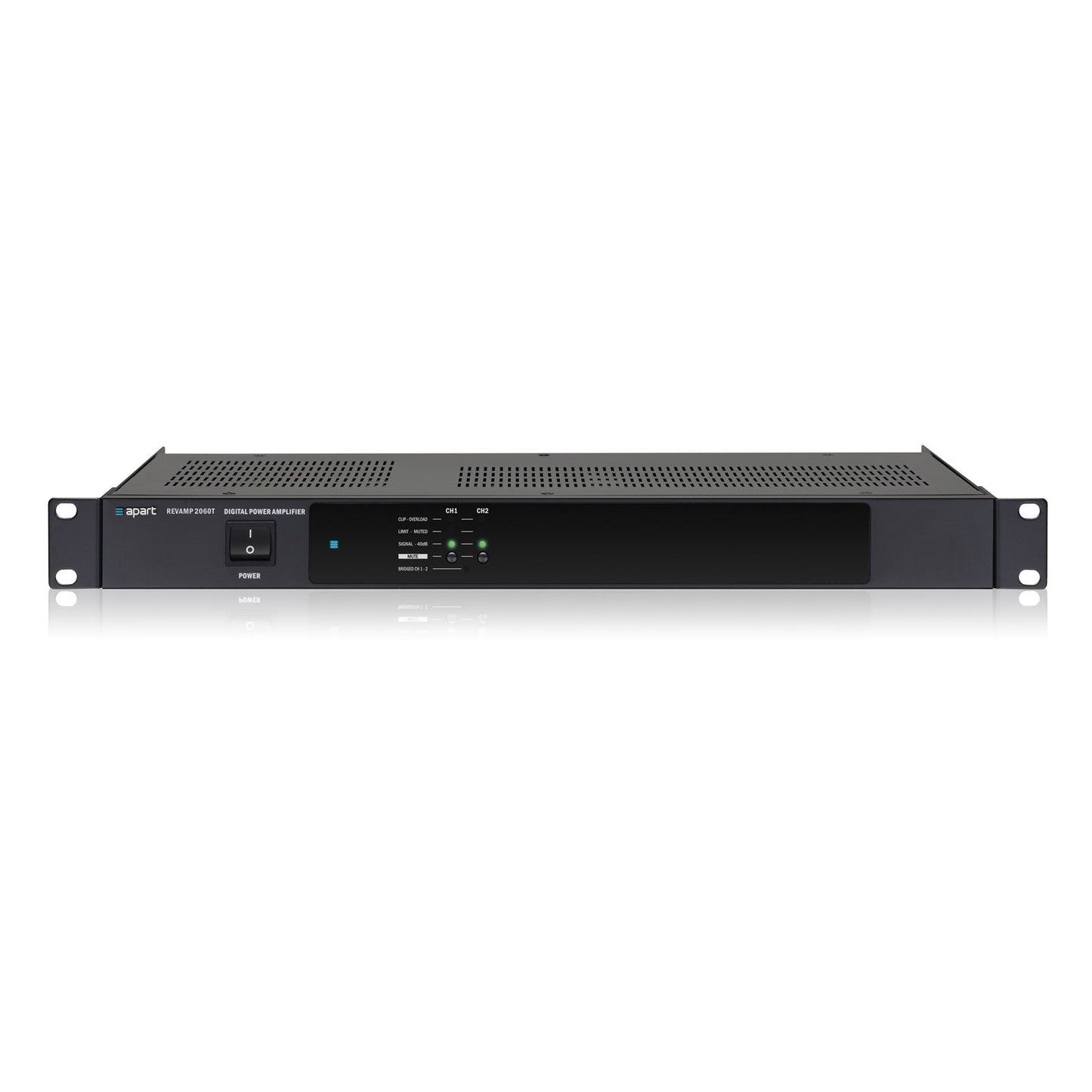

The new versatile REVAMP2060T is a professional 2-channel digital power amplifier with an output power of 2 x 60 watts at 100 volts or 4 ohms, which can easily be linked to a powerful 120 watt amplifier at 100 volts or 8 ohms. This class D amplifier has a built-in galvanically separated toroidal output transformer to prevent external influences and disturbances. A quick installation tool on the back is the clip-on LED indicator that can be used during input gain setup. The convection-cooled REVAMP2060T has no fan inside, meaning the amplifier runs quietly and remains dust-free at all times. This maintenance-free feature, along with ease of installation through multiple input and link connection options, makes the REVAMP2060T the installer's preferred choice.
DATA SHEET
| SPECIFICATIONS | |||
| Dynamic output power 4 ohms. | 2 x 60 watts | RMS output power 4 ohms | 2 x 60 watts |
| 8 ohm dynamic output power. | 2 x 30 watts | RMS output power 8 ohms | 2 x 30 watts |
| Bridged dynamic output power 8 ohms | 120 watts | bridged RMS output power 8 ohms | 120 watts |
| RMS output power 100 volts | 2 x 60 watts | Bridged RMS Output Power 100 Volts | 120 watts |
| Minimum impedance loading per channel | 4 ohms | Bridged minimum impedance load per channel | 8 ohms |
| power consumption (max) | 175 watts | 19" rack mount (483mm wide) | Yeah |
| Height units (1U = 44mm) | 1U | depth (build in) | 230mm |
| depth (incl front) | 239mm | power supply | 115 - 230 VAC |
| power supply technology | switch mode power supply | output voltage sockets | 100 - 70 - 50 - 35 volts - 4 ohms |
| output channels | 2 | balanced line input | 2 |
| unbalanced line input | 2 | channel separation | >65db@1kHz |
| power amplifier topology | class D | frequency response (in Hz) | 50 - 20k |
| refrigeration system | convective | applicable at 100V | Yeah |
| applicable low impedance | Yeah | Product net weight (kg) | 5.7 |
CHARACTERISTICS
2 Channel 100V Bridgeable Digital Power Amplifier, 2 x 60W, REVAMP2060T
