REVAMP2250 Apart Power Amplifier - Commercial Audio
REVAMP2250 Apart Power Amplifier - Commercial Audio
Couldn't load pickup availability
DESCRIPTION
REVAMP2250 is a professional 2-channel digital power amplifier with an output power of 2 x 350 watts at 4 ohms, but can also be bridged (1 x 700 watts at 8 ohms). The unit incorporates a high-efficiency SMPS power supply and outputs with an efficient Class D output topology.

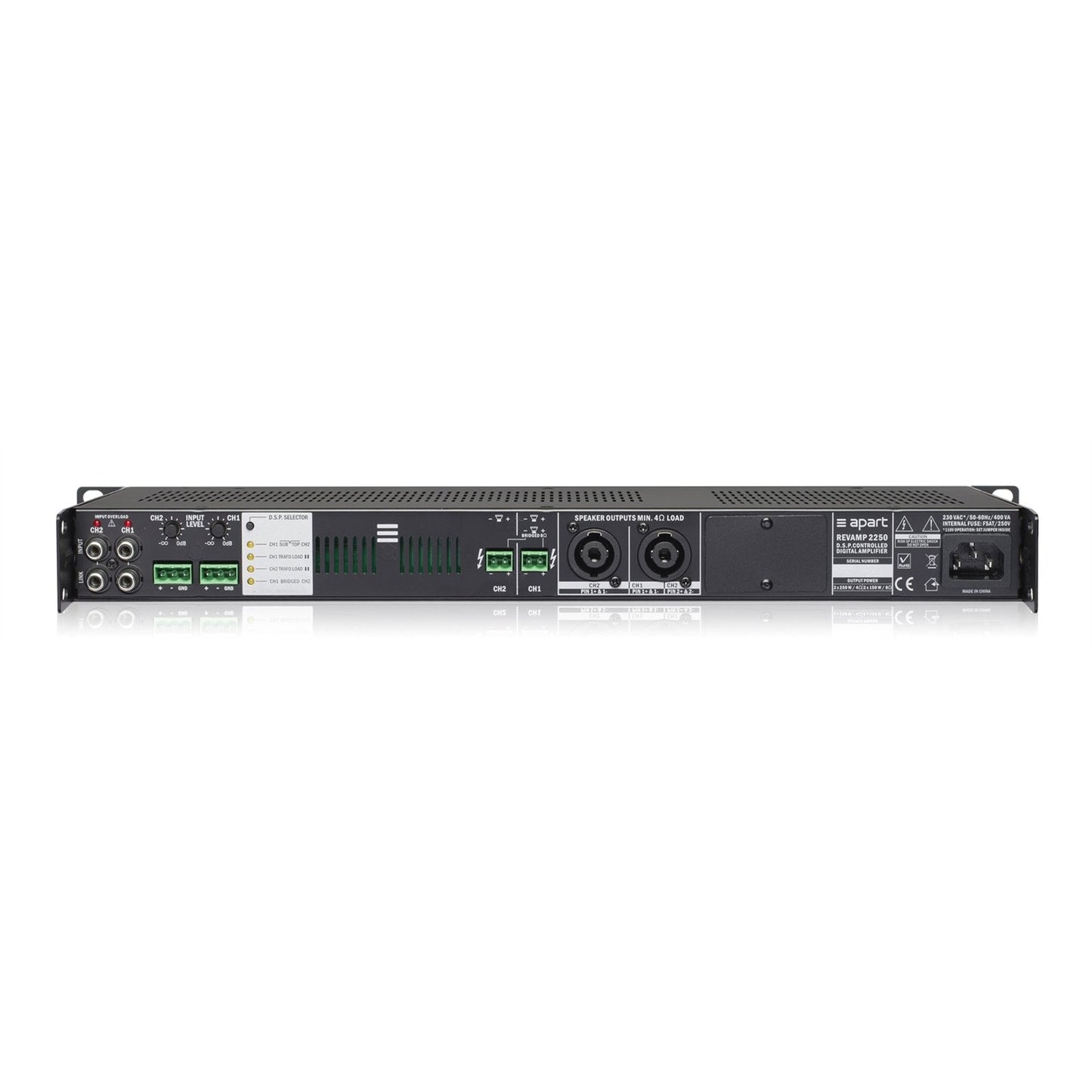

The digital signal processor inside works with a simple button on the back of the unit to select an operating mode (6 presets). An example of a preset is the combination of subwoofer CH1 and transformer load CH2. In this example, you have a low-pass filter to increase stability when using 100-volt transformers at the output, allowing you to use 100-volt speakers as overhead speakers combined with a standard low-impedance subwoofer. With the other presets, channels can be bypassed, high pass filters can be applied to a channel...
DATA SHEET
| Dynamic output power 4 ohms. | 2 x 350 watts | RMS output power 4 ohms | 2 x 250 watts |
| 8 ohm dynamic output power. | 2 x 175 watts | RMS output power 8 ohms | 2 x 125 watts |
| Bridged dynamic output power 8 ohms | 700 watts | bridged RMS output power 8 ohms | 500 watts |
| Minimum impedance load per channel | 4 ohms | Bridged minimum impedance load per channel | 8 ohms |
| power consumption (max) | 600 watts | 19" rack mount (483mm wide) | Yeah |
| Height units (1U = 44mm) | 1U | depth (build in) | 230mm |
| depth (incl front) | 239mm | power supply | 115 - 230 VAC |
| power supply technology | switch mode power supply | output channels | 2 |
| balanced line input | 2 | unbalanced line input | 2 |
| channel separation | > 74 dB at 1 kHz | power amplifier topology | class D |
| frequency response (in Hz) | 10 - 24k | refrigeration system | convection |
| applicable low impedance | Yeah | Product net weight (kg) | 3.10 |
CHARACTERISTICS

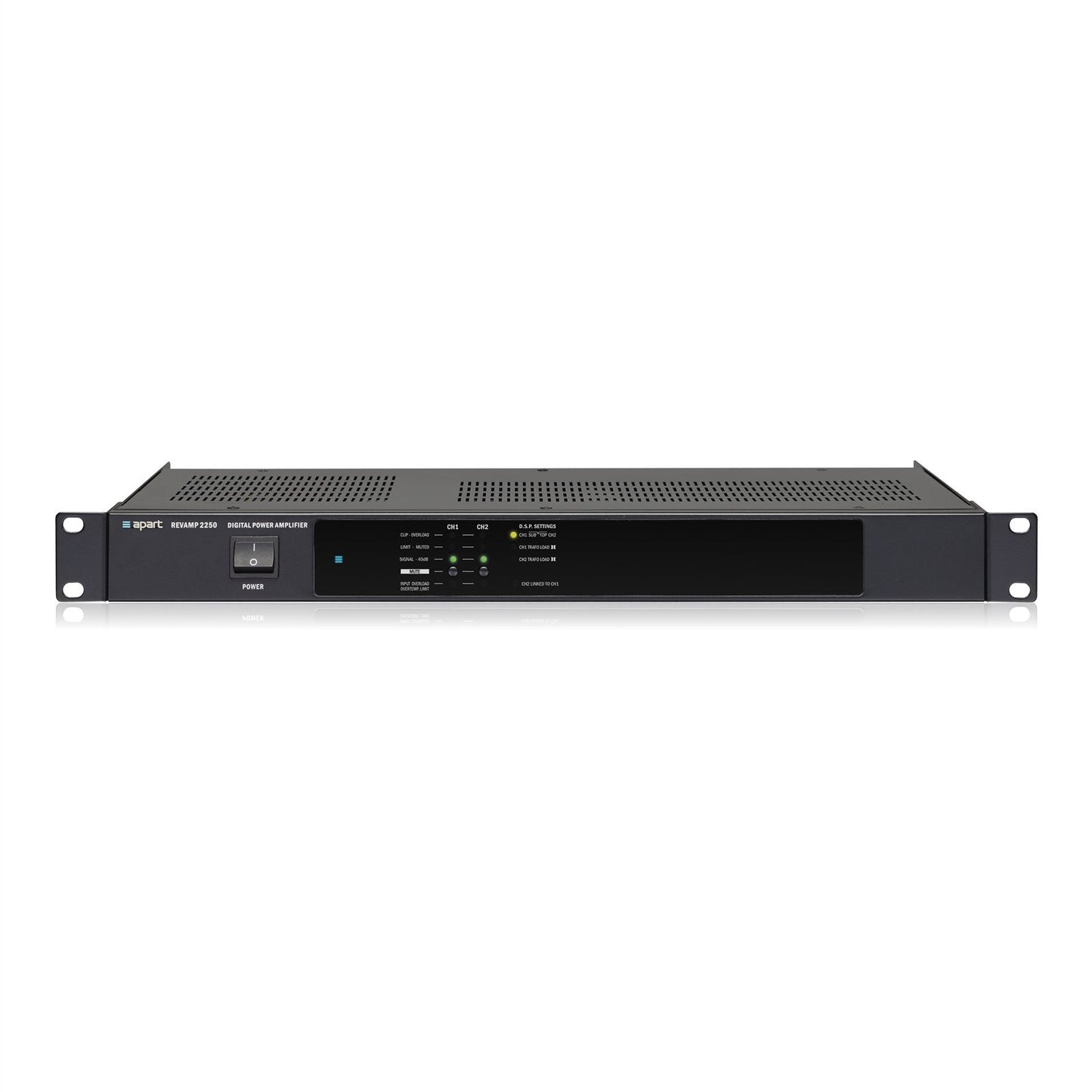

The very intuitive front display shows what's happening in the blink of an eye. Thanks to our own designed automatic protection system (patent pending) with intelligent use of a compressor/limiter topology, we take our switch mode power supply to an unexpected level. This manifests itself in great dynamic power with invisible musicality and exceptional dynamic sound.
Ease of use, high technology, reliability and high output power have never been combined so cleverly as in this REVAMP2250 amplifier.
