Onkyo

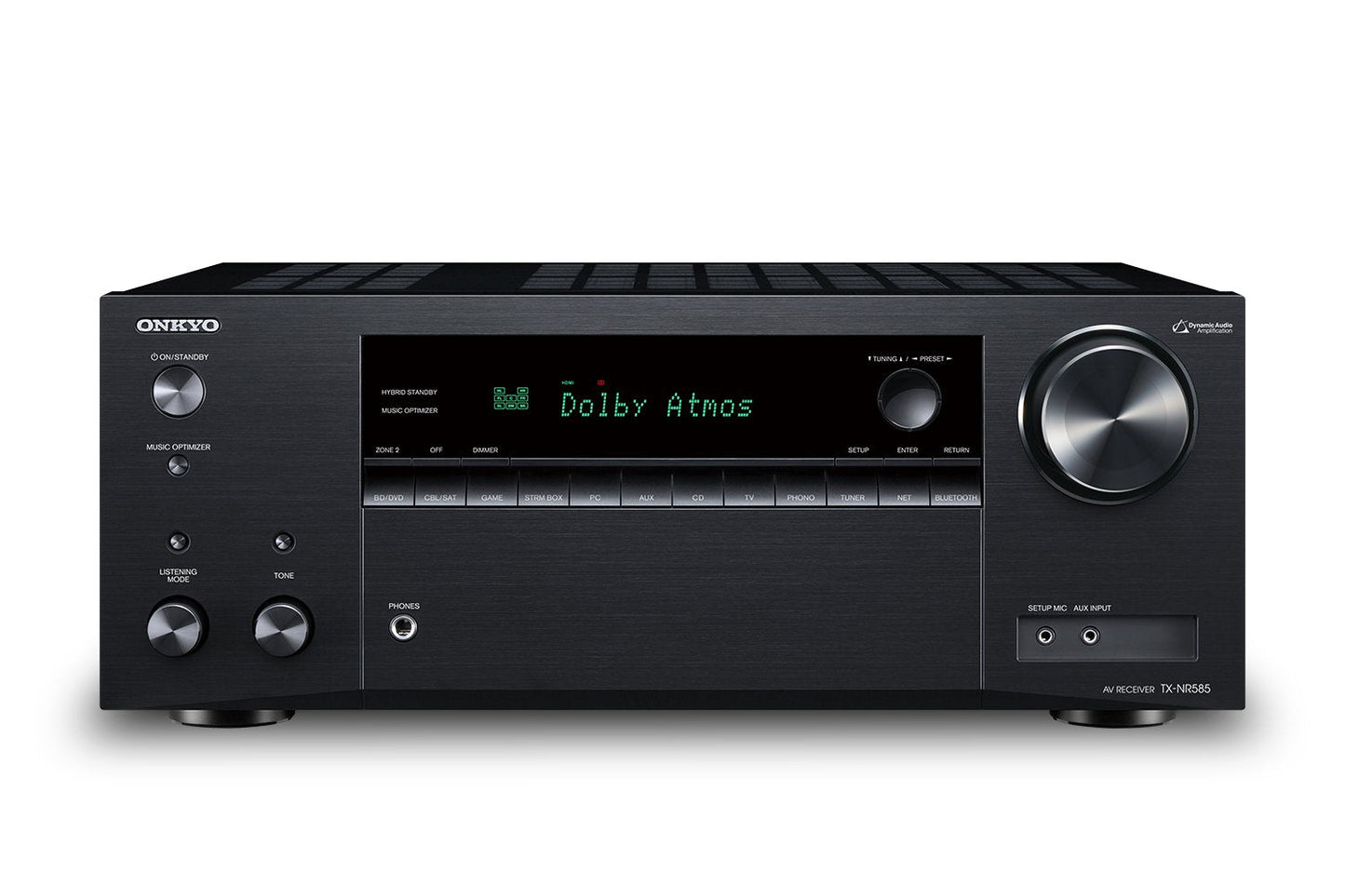

TX-NR585 Onkyo AV Amplifier 7.2-Ch Network Receiver with Google and Zone 2 - Audio and Video

TX-NR585 Onkyo AV Amplifier 7.2-Ch Network Receiver with Google and Zone 2 - Audio and Video

Regular price $857.00 USD
Regular price Sale price $857.00 USD
Sale Sold out
Shipping calculated at checkout.

DESCRIPTION

Enjoy wireless audio streaming and multi-channel object-based audio with the Onkyo TX-NR585 7.2-Channel Network A/V Receiver . The receiver has support for Dolby Atmos and DTS:X for object-based audio support. Delivers up to 80 watts per channel at 8 ohms for robust audio reproduction. Built-in AirPlay and Bluetooth connectivity let you wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, and tablets. Onboard Wi-Fi and Ethernet connectivity give you the ability to stream music from Internet radio sources.

The Onkyo TX-NR585 has six HDMI inputs for interconnecting audio and video sources, including support for HDR UHD video sources. There is also a USB port on the rear panel for connecting a USB drive. The free Onkyo Controller app will allow you to control your receiver from a smartphone or tablet. Built-in high-resolution audio support lets you take advantage of dynamic surround sound formats like DTS-HD Master Audio and Dolby TrueHD.

Supports Dolby Atmos and DTS:X Playback
Object-based sound tracks allow a mixed sound to be played independently through any speaker in the system. The effects move around you as they do in real life, so you experience the 5.2.2-channel Dolby Atmos or DTS:X formats, as the director intended. DTS Neural: X is designed to identify spatial effects in multichannel sound tracks and mix them for 3D playback, while DTS: Dolby Surround is also included to premix legacy multichannel formats for playback in a Dolby Atmos-enabled environment.
Chromecast built-in with Google Assistant
Stream almost any music from your compatible smartphone or computer to the receiver and control playback with Chromecast-enabled apps from your iOS or Android phone or tablet, your Mac or Windows laptop, or your Chromebook. If you have a smart device with Google Assistant, you can prompt and control music on the receiver with just your voice.

Zone 2 and zone 2 line outputs actuated

The Zone 2 speaker outputs let you send amplified network, S/PDIF, or analog audio sources to a pair of speakers in another room. The line outputs can connect your home theater sources to a separate hi-fi system. Control playback using the Onkyo Controller app.

Wi-Fi, AirPlay and Bluetooth wireless connectivity

Built-in 2.4/5 GHz Wi-Fi helps ensure stable connectivity so you can enjoy smooth streaming, connection to the Onkyo Controller app, and multi-room audio, while Bluetooth wireless technology is integrated for easy mobile device or laptop connection. Music lovers have easy access and control of their entire iTunes music library through the receiver. Find and stream music from your iOS, Mac, or Windows device through the Apple AirPlay wireless audio platform.

Streaming and internet radio services
Amazon Music, Spotify, TIDAL, Deezer, Pandora and TuneIn are built in, making it easy to select entertainment using the Onkyo Controller app.
FlareConnect Multi-Room Audio, available with a future firmware update
FlareConnect shares network audio and external audio input sources between compatible components. Enjoy multi-room playback of records, CDs, network music services and more with compatible components and speaker systems. Music selection, speaker grouping, and whole-home playback management are all built into the Onkyo Controller app.
384kHz/32bit DAC
Asahi Kasei's AK4458 digital-to-analog converter implements low-distortion filtering technologies for clear sound for almost any audio format, including MP3, WMA, FLAC, WAV, OggVorbis, AAC, Apple Lossless compressed, lossless, DSD 5.6 audio. MHz, LPCM and Dolby TrueHD.
Soft analog signal with VLSC
Onkyo developed a vector linear shaping circuit (VLSC) to reassemble the audio signal to its original form after processing. Unlike conventional filters, VLSC eliminates pulse noise generated in D/A conversion, allowing the sound wave to be reproduced with high fidelity for a smooth analog signal.
Dynamic Audio Amplification
Onkyo dynamic audio amplification delivers power at 170W/Ch (6 Ohms, 1 kHz, 0.9% THD, 1 channel driven) or 80W/Ch (8 Ohms, 20 Hz to 20 kHz, 0.08% THD, 2 channels powered, FTC).

DATA SHEET

Amplifier
The channels 7.2
Output power per channel 80 W per channel into 8 ohms, 20 Hz to 20 kHz, 0.08% THD, 2 channels driven, FTC
170 W per channel at 6 ohms, 1 kHz, 10% THD, 1 channel driven
Dynamic power per channel 85 W (8 ohms, front)
125 W (4 ohms, front)
160 W (3 ohms, front)
THD and noise 0.08% (20 Hz to 20 kHz, half power)
Input sensitivity and impedance 200 mV / 47 kOhms
RCA output level and impedance Subwoofer Pre Output, Output: 1 V / 470 Ohms
Line Output Zone, Rating: 200 mV / 2.3 kOhms
phono overload 70 mV (MM, 1 kHz, 0.5%)
Frequent response 10 Hz to 100 kHz / +1 dB, -3 dB (Direct Mode)
tone control Bass: ±10 dB, 90 Hz
Treble: ±10 dB, 7.5 kHz
Signal-to-noise ratio 106 dB (line, IHF-A)
80 dB (phono, IHF-A)
speaker impedance 4 to 16 ohms
Damping factor (8) > 49 (front, 1 kHz)
amplifier class Linear class A/B
Video
Input sensitivity/output level and impedance 1 Vp-p / 75 ohms (Y component)
0.7 Vp-p / 75 ohms (PB/CB, PR/CR component)
1 Vp-p / 75 ohms (composite)
Video frequency response component +0 dB, -3 dB
Treatment
dac 384kbps/32bit
Dolby Dolby Atmos (5.2.2), Dolby TrueHD, Dolby Digital Plus
DTS DTS: X, DTS Neural: X, DTS-HD Master Audio
Calibration AccuEQ with AccuReflex
Tuner Section
Tuning frequency range FM: 87.5 to 107.9 MHz
AM: 530 to 1710 kHz
FM/AM preset memory 40 stations
Connectivity
Wifi IEEE 802.11a/b/g/n dual-band 2.4/5 GHz
Bluetooth Version 4.1 + LE, A2DP v1.2 and AVRCP v1.3
Airplay Yeah
Dual Amplifier Capability Yes, for front speakers.
Audio Return Channel (ARC) Yeah

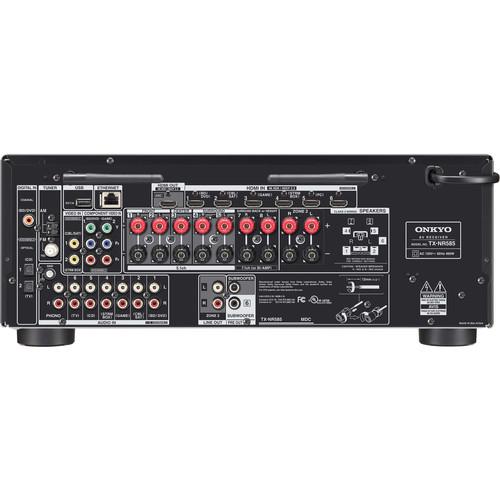

Tickets 6 x HDMI
2 x component video
2 x composite video
2 x TOSLINK optical
1 x coaxial digital
6 x RCA stereo
1 x stereo RCA phono with ground screw
1 x 1/8"/3.5mm aux (front)
Departures 1 x HDMI
1 x Stereo RCA Zone 2
2 x subwoofer pre-out
1 x 1/4" (6.35mm) headphone jack (front)
Other interfaces 1 x Ethernet LAN
1 x USB
1 x 1/8"/3.5mm calibration microphone (front)
1 x AM antenna
1 x FM antenna
Speaker connectors 9 x pairs of binding posts
General
energy requirements 120VAC, 60Hz
Power consumption Typical: 460W
No sound: 55W On
Standby: 0.15W
Dimensions (W x H x D) 17.1 x 6.8 x 14.9" (435 x 173.5 x 379.5mm)
Weight 20.7 lbs (9.4 kg)
Packaging information
package weight 24.6 pounds
Box dimensions (LxWxH) 20.0 x 17.8 x 10.0"
