TX-NR686 ONKYO AV AMPLIFIER 7.2 BLUETOOTH RECEIVER - AUDIO AND VIDEO
TX-NR686 ONKYO AV AMPLIFIER 7.2 BLUETOOTH RECEIVER - AUDIO AND VIDEO
Couldn't load pickup availability
DESCRIPTION

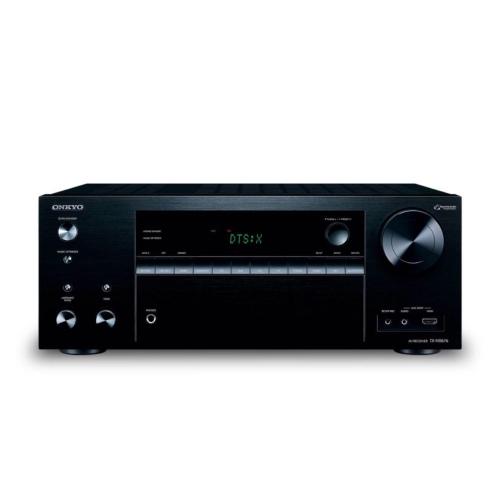

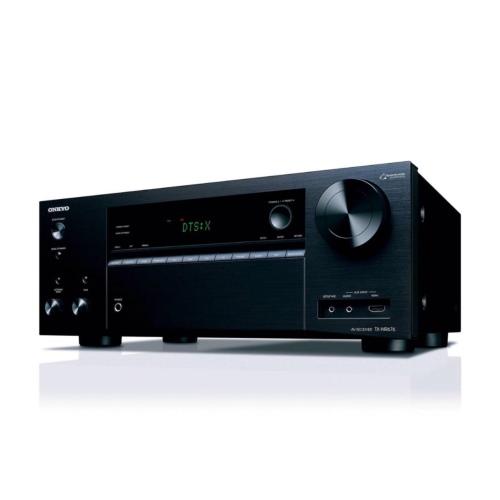

Enjoy wireless audio streaming and multi-channel object-based audio with the Onkyo TX-NR686 7.2-channel network A/V receiver . The receiver has support for Dolby Atmos and DTS:X for object-based audio support. Delivers up to 100 watts per channel at 8 ohms for robust audio reproduction. Built-in AirPlay and Bluetooth connectivity let you wirelessly stream music from compatible audio sources such as computers, MP3 players, smartphones, and tablets. Onboard Wi-Fi and Ethernet connectivity give you the ability to stream music from Internet radio sources.

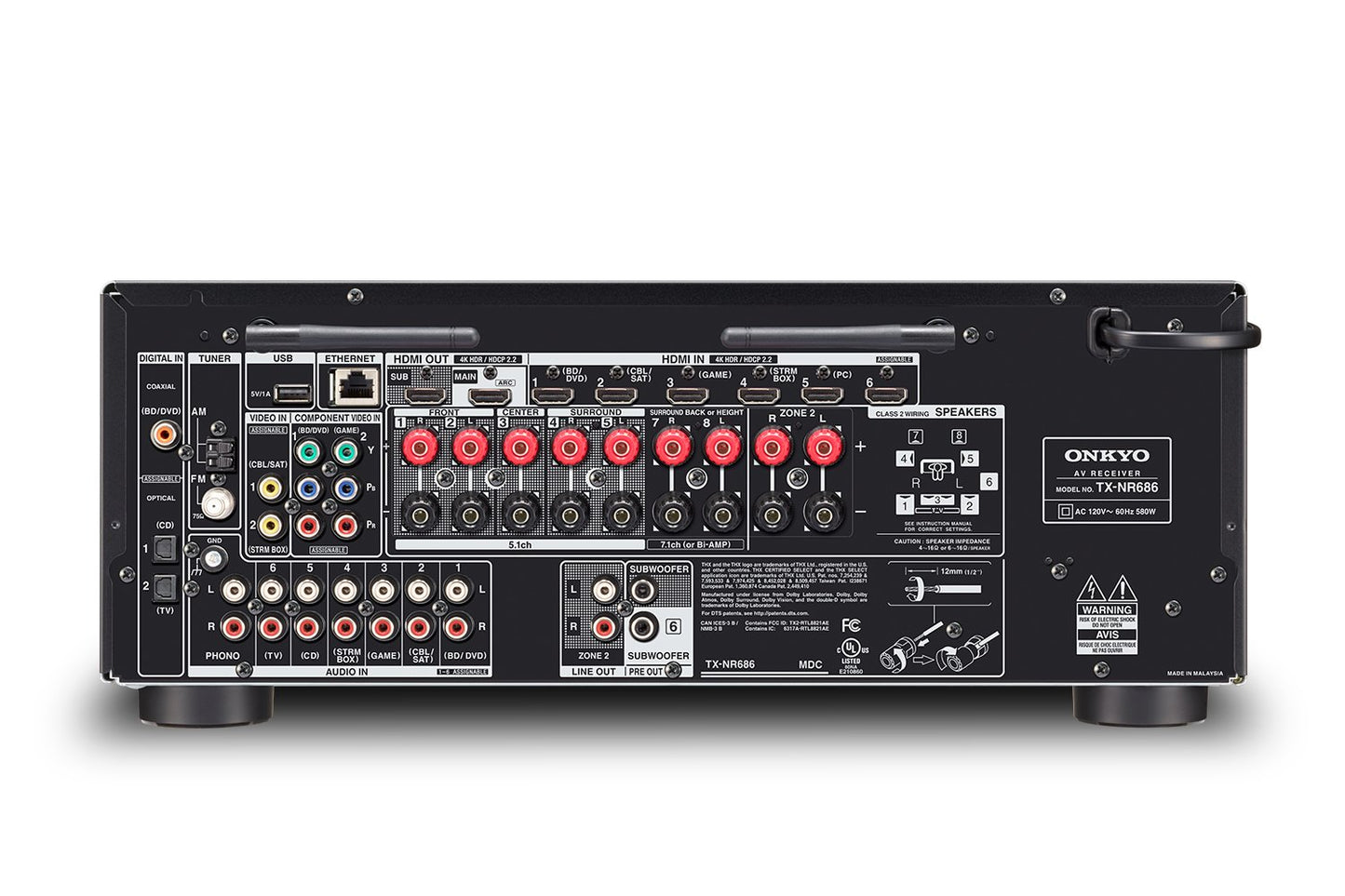

The Onkyo TX-NR686 has seven HDMI inputs for interconnecting audio and video sources, including support for HDR UHD video sources. There is also a USB port on the rear panel for connecting a USB drive. The free Onkyo Controller app will allow you to control your receiver from a smartphone or tablet. Built-in high-resolution audio support lets you take advantage of dynamic surround sound formats like DTS-HD Master Audio and Dolby TrueHD.
DATA SHEET
| power output | |
| All the channels |
100 W/Ch (8 ohms, 20 Hz – 20 kHz, 0.08% THD, 2 controlled channels, FTC) 210 W/Ch (6 ohms, 1 kHz, 10% THD, 1 channel driven) |
| dynamic power |
240 W (3 ohms, front) 210 W (4 ohms, front) 120 W (8 ohms, front) |
| THD + N (total harmonic distortion + noise) | 0.08% (20 Hz – 20 kHz, half power) |
| Damping factor | - |
| Input sensitivity and impedance |
200 mV / 47k ohms (line / unbalanced) 3.5 mV / 47k ohms (phono/mm) |
| Nominal RCA output level and impedance |
200 mV / 2.3k ohms (zone 2 line output) 1 V / 470 ohms (subwoofer pre-output) |
| Maximum RCA output level and impedance | - |
| phono overload | 70 mV (MM, 1 kHz, 0.5%) |
| Frequent response | 10 Hz – 100 kHz / + 1 dB, -3 dB (Direct Mode) |
| tone control |
±10 dB, 90 Hz (low) ±10 dB, 7.5 kHz (treble) |
| Signal-to-noise ratio |
106 dB (Line, IHF-A) 80 dB (Phono, IHF-A) |
| speaker impedance | 4 ohms to 16 ohms |
| Video section | |
| Input sensitivity/output level and impedance | - |
| Video |
1.0 Vp – p / 75 Ohms (Y Component) 0.7 Vp – p/75 Ohms (Component PB/CB, PR/CR) 1.0 Vp – p / 75 Ohms (Composite) |
| Video frequency response component | +0 dB, -3 dB |
| Tuner Section | |
| Tuning frequency range | |
| FM | 87.5 MHz – 107.9 MHz |
| A.M | 530kHz – 1,710kHz |
| FM/AM preset memory | 40 stations |
| General | |
| Power supply | AC 120V~, 60Hz |
| Power consumption | 580W |
| Power consumption without sound | 60W |
| Standby power consumption | 0.15W |
| Dimensions (W x H x D) | 17 1/8" x 6 13/16" x 14 15/16" (435 x 173.5 x 379.5mm) |
| Weight | 22 pounds (10 kg) |
