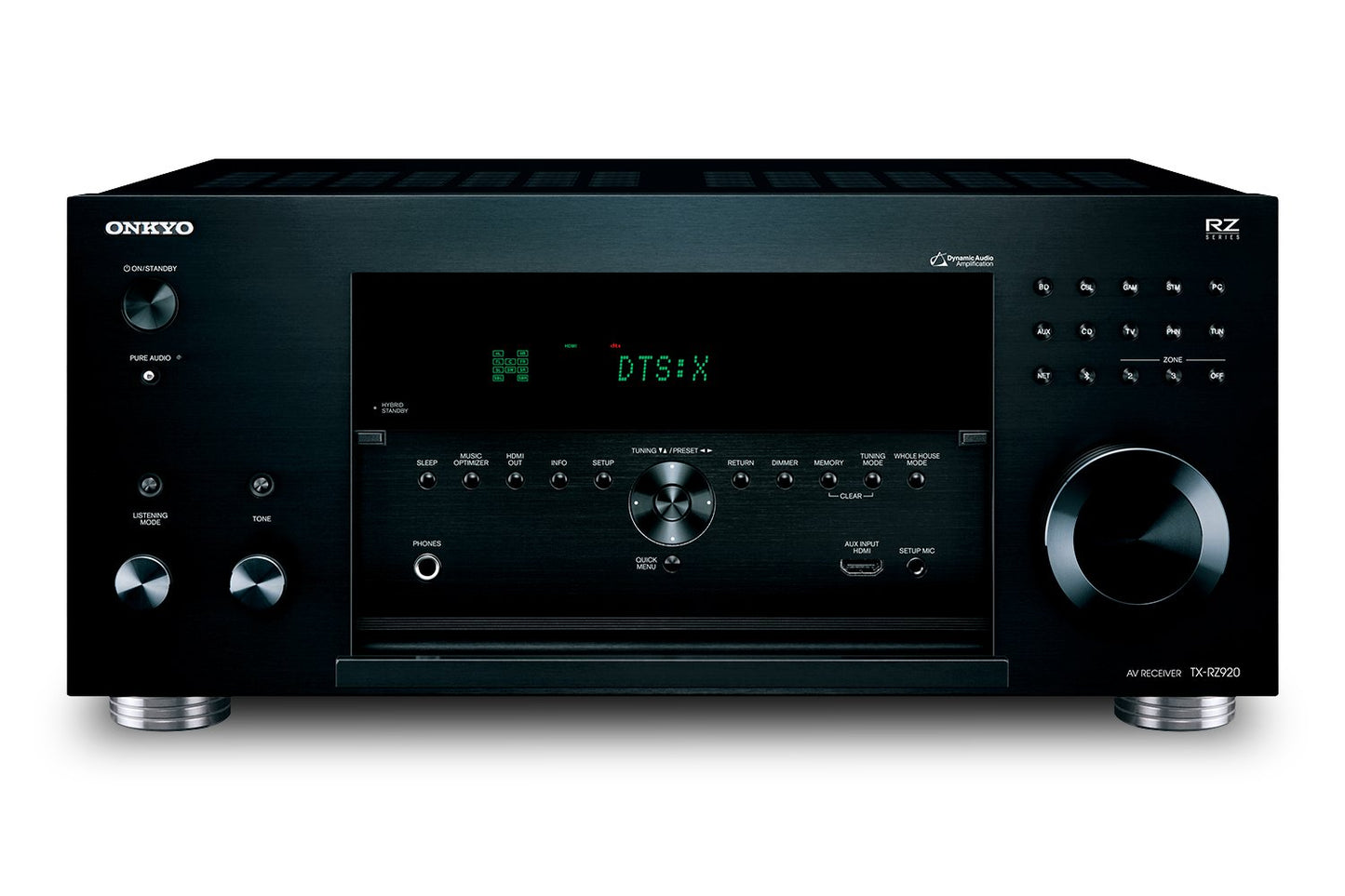

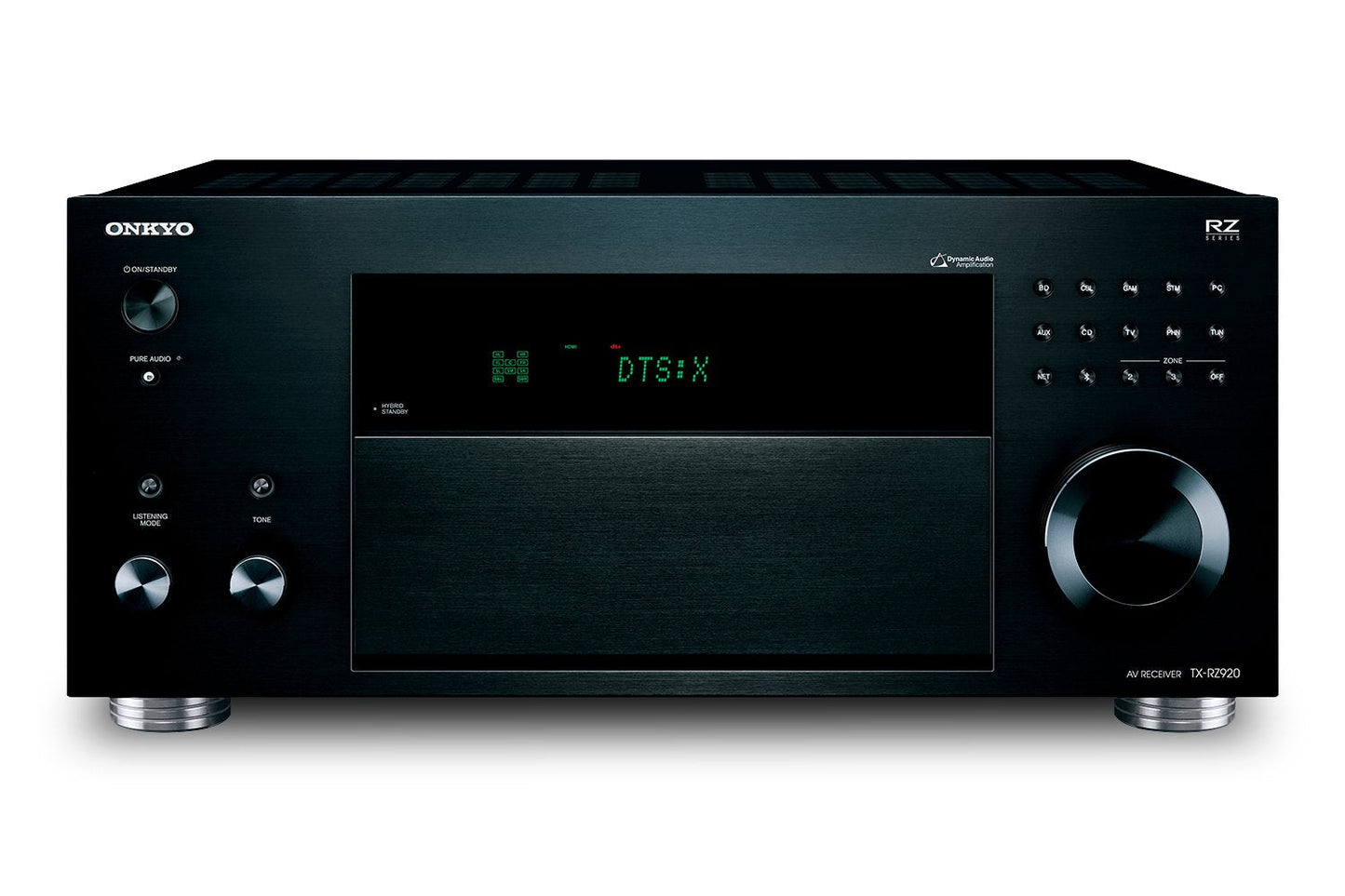

TX-RZ920 Onkyo AV Amplifier 9.2 THX Network Receiver - Audio and Video

TX-RZ920 Onkyo AV Amplifier 9.2 THX Network Receiver - Audio and Video

$2,470.00 USD
$2,470.00 USD
Sale Sold out
Shipping calculated at checkout.

DESCRIPTION

Get 4K Ultra HD pass-through plus HDR10, HLG and Dolby Vision over HDMI with the Onkyo TX-RZ920 9.2-channel network A/V receiver . Produces up to 135 watts of power per discrete channel at 8 ohms for room-filling sound. AccuEQ sound optimization will allow you to adapt the sound to the specific acoustics of your room.

Built-in Bluetooth connectivity lets you listen to music wirelessly from your favorite Bluetooth-enabled devices, while built-in Wi-Fi connectivity provides access to apps like Spotify, TIDAL, and more. You can also connect a USB drive to the USB port on the rear panel to play your stored media files. The TX-RZ920 is equipped with eight HDMI inputs and two HDMI outputs. One of the HDMI outputs supports ARC for TV-based audio playback, such as your TV's built-in apps.

Dolby Atmos and DTS:X object-based surround sound

The TX-RZ920 can play 5.2.4-channel Dolby Atmos or DTS:X formats, with AccuReflex correcting the phase of direct and indirect sounds for cohesive audio images with Dolby Atmos-enabled speakers.

Wi-Fi, AirPlay and Bluetooth

Dual-band 2.4/5 GHz Wi-Fi helps ensure stable connectivity so you can enjoy smooth streaming over AirPlay and local network. Bluetooth wireless technology also provides streaming from your choice of music app.

Internet radio and streaming services
Spotify, TIDAL, Deezer, Pandora and TuneIn are on board to help make selecting a wide range of music and radio programs using the Onkyo Controller app simple.

FireConnect wireless multi-room audio, available through future firmware update

Any audio source can be connected to the receiver to be sent wirelessly via FireConnect, powered by Blackfire, to an optional compatible speaker located anywhere in your home. Music selection, speaker grouping, and whole-home playback management are all built into the Onkyo Controller app for iOS and Android.

DATA SHEET

main unit
The channels 9.2
Output power per channel 135 W per channel (8 Ohms, 1 kHz, 0.08% THD, 2 channels driven, FTC)
175 W per channel (6 Ohms, 1 kHz, 0.9% THD, 1 channel driven, FTC)
Dynamic power per channel 150 W (8 ohms, front)
260 W (4 ohms, front)
320 W (3 ohms, front)
THD and noise 0.04% (1kHz, 100W)
Input sensitivity and impedance 200 mV / 82 kOhms (Line)
3.5 mV / 47 kOhms (Phono MM)
RCA output level and impedance Pre-Out, Classification:
Subwoofer 1V / 330 Ohms Pre Output, Rating: 1 V / 330 Ohms
Zone Line Out, Rating: 200 mV / 1.2 kOhms
Zone Pre-Out, Rating: 2 V / 1.2 kOhms
phono overload 70 mV (MM, 1 kHz, 0.5%)
tone control Low: ±10 dB, 100 Hz.
Treble: ±10 dB, 10 kHz
Signal-to-noise ratio 107 dB (line, IHF-A)
90 dB (MM phono, IHF-A)
speaker impedance 4 to 16 ohms
Treatment
Dolby Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Surround
DTS DTS:X, DTS-HD Master Audio, DTS Neural:X
Video section
Input sensitivity/output level and impedance Y Component: 1.0 Vp-p / 75 Ohms
PB/CB, PR/CR Component: 0.7 Vp-p/75 Ohms
Composite: 1.0 Vp-p / 75 Ohms
Tuner section
Tuning frequency range FM: 87.5 to 107.9 MHz
AM: 530 to 1710 kHz
FM/AM preset memory 40 stations
Connectivity
Wifi Yes, dual band (2.4 and 5 GHz)
Bluetooth Yeah
Apple AirPlay Certified Yeah

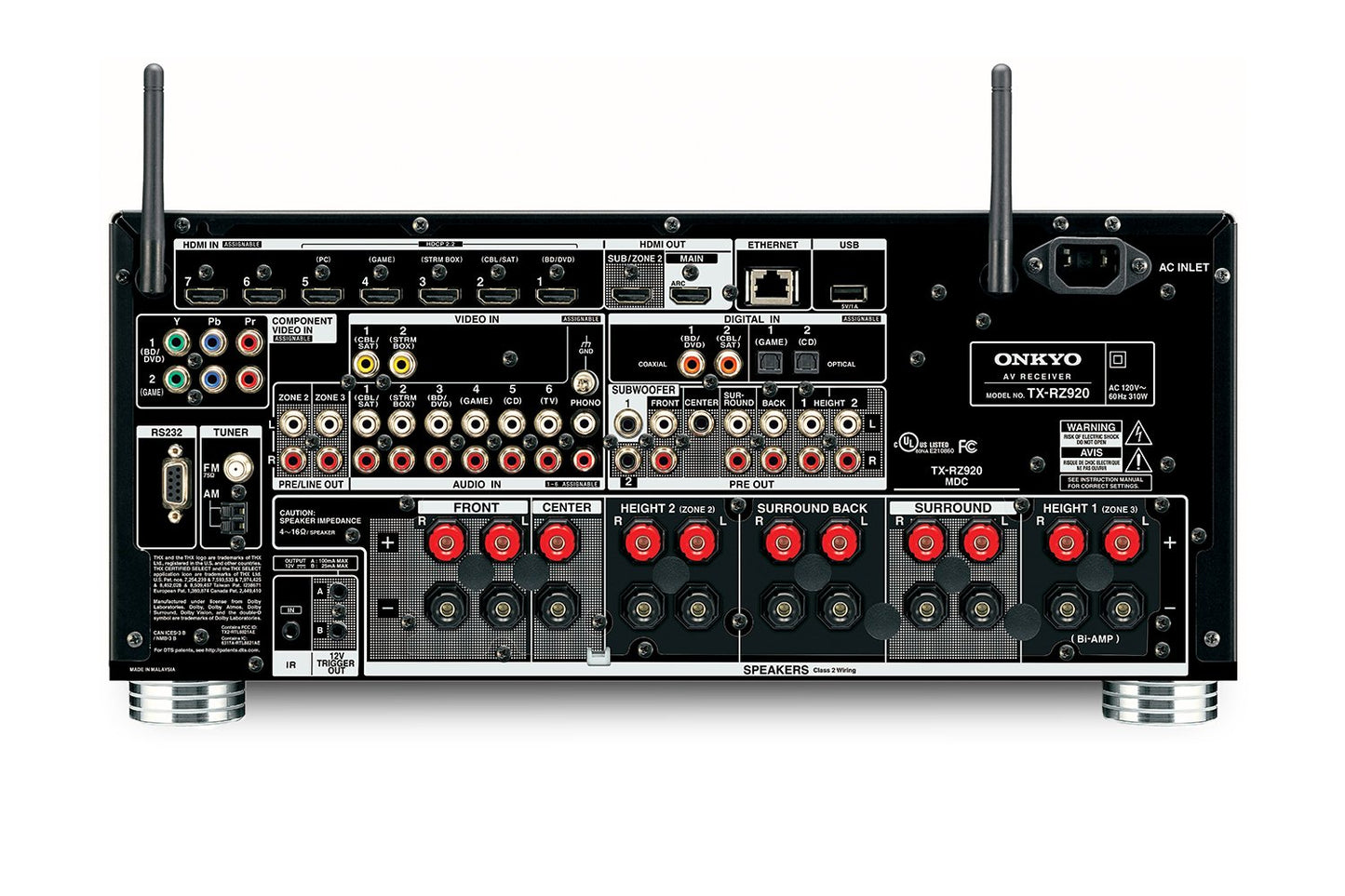

Tickets 7 x HDMI (1 front)
2 x component video
2 x composite video
2 x digital coaxial
2 x TOSLINK optical
6 x RCA stereo
1 x RCA Stereo Phono
1 x USB
Departures 2 x HDMI
1 x 11 channel pre-out
1 x stereo RCA zone 2 line out
1 x stereo RCA zone 3 line out
2 x subwoofer pre-out
1 x 1/4" (6.35mm) headphone jack (front)
Other interfaces 1 x Ethernet
1 x 1/8" (3.5mm) setup microphone (front)
1 x 1/8" (3.5mm) IR in
1 x RS-232 in
2 x 1/8" (3.5mm) 12V trigger outside
1 x AM antenna
1 x FM antenna
1 x phono ground screw
Speaker connectors 11 x pairs of binding posts
Zone 2 audio output Fed and pre-out
Zone 3 audio output Fed and pre-out
Dual Amplifier Capability Yes, through the Height 1/Zone 3 speaker outputs
General
energy requirements 120VAC, 60Hz
Power consumption Typical: 310W
on, no sound: 80 W on
Standby: 0.1W
Dimensions (W x H x D) 17.13 x 7.9 x 17.84" (435 x 201 x 453mm)
Weight 35.9 lbs (19 kg)
Packaging information
package weight 41.09 pounds
Box dimensions (LxWxH) 22.0 x 22.0 x 12.0"
