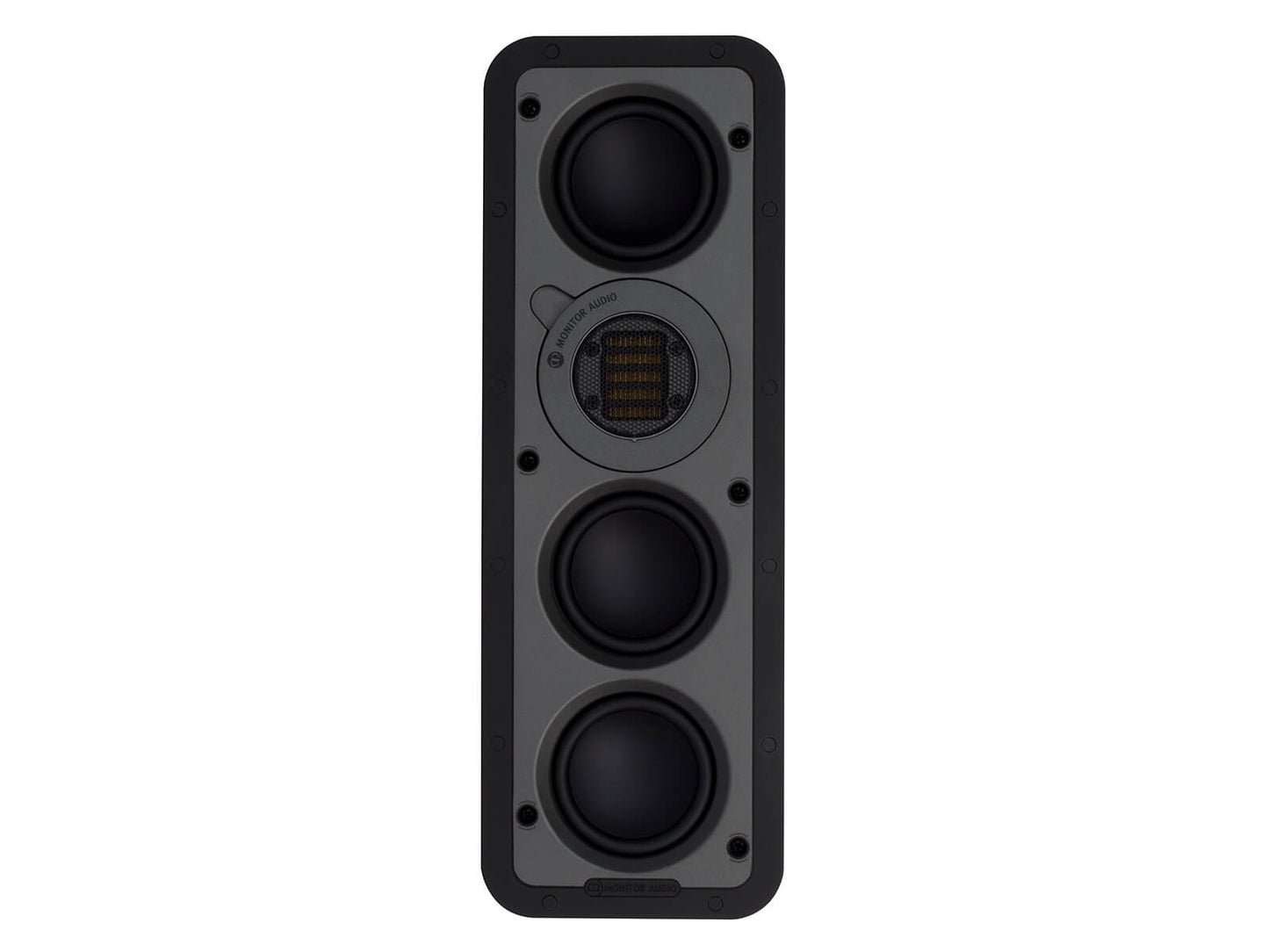

WSS430 Hi-Fi Wall Speaker Monitor Audio - Unit

Frequency response (-6 dB) 70 Hz – 50 kHz Sensitivity (1W@1M) 87 dB Nominal impedance 8 ohms Maximum SPL 106.5 dBA Power handling (RMS) 75 W Full range (120 W with crossover set to 100 Hz @
12 dB/octave) Recommended Amplifier Requirements 10 – 120 W Drive Unit Companion 3 x 3" Dish C-CAM Cone Mid/Bass Drivers 1 x MPD
High frequency transducer: rotatable for vertical or horizontal application. Crossover recommendation using AVR/processor 100 Hz at a minimum of 12
dB/Octave (24 dB/Octave optimal) Overall Dimensions 385 x 140.5 mm (15 x 51/2") Overall Depth (including grille) 54.25 mm (21/8") Cut Out Dimensions 346 x 101 mm (131/2") x 4") Mounting Depth 50 mm (2") Connection Gold plated spring-loaded push terminals - for connecting bare wires upwards
at 3 mm2 Fixing Type 6-Position Tri-Grip Dogleg Fixings Weight 1.1 kg (2 lb 6 oz) Construction Material ABS plastic with mineral fill, RoHS2 compliant. Painted
Steel Grating Pre-Construction Support WB3 Pre-Construction Support (Dark Blue) Sold as a single unit
